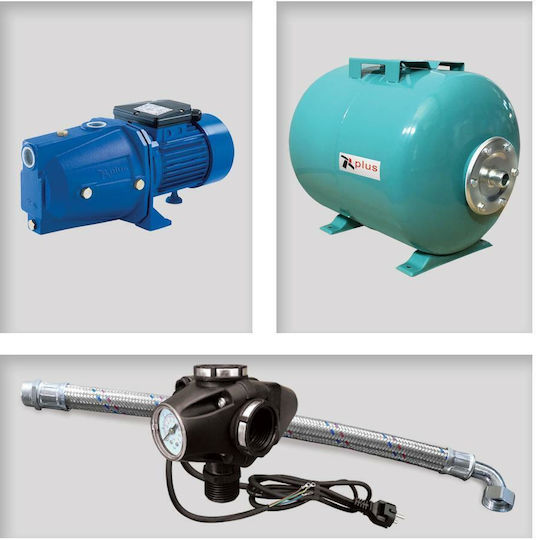

The pressure unit consists of:

• Pump
• Expansion tank
• Pressure switch kit with manometer
• Flexible hose

Type: JM10

Pump Type: JET

Power (hp-Watt): 1Hp-736Watt

Voltage (Volt): 220 Volt/50 Hz

Pressure adjustment: Pressure switch

Inlet diameter Φ (Inch-mm): 1"-25mm

Outlet diameter Φ (Inch-mm): 1"-25mm

Max performance (M): 53.00

Max flow rate (m3/h): 3.00

Body construction material: Cast iron

Impeller construction material: Stainless steel AISI 304

Automatic priming (M): Yes

Suction lift (M): 8

Pumped liquid temperature (°C): 40

Ambient temperature (°C): 40

Power supply: Electric current

Tank arrangement: Horizontal

Capacity (Lt): 50
