Description
Specifications

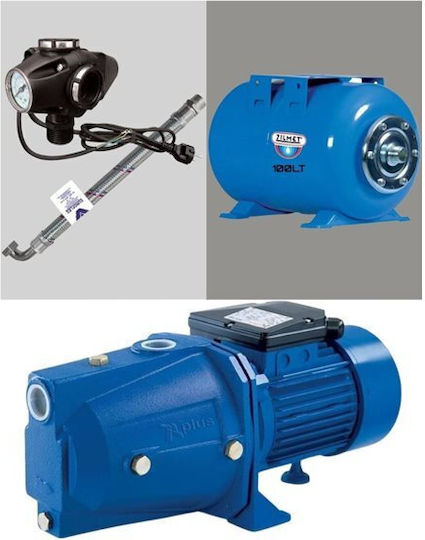

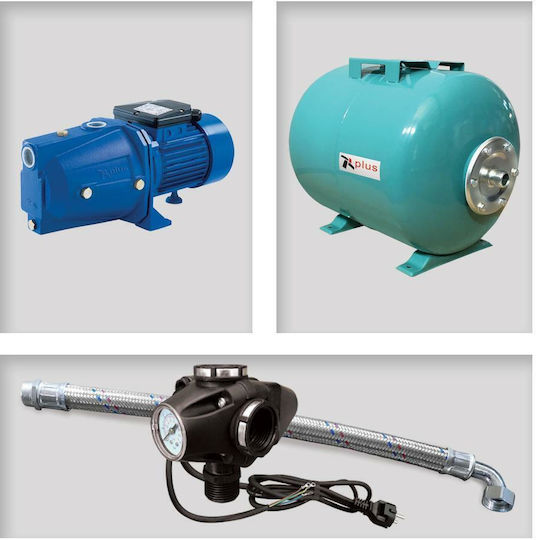

The pressure unit consists of:
- Pump
- Expansion tank
- Pressure switch kit with gauge
- Flexible hose
Type: JM15
Pump Type: JET
Power: 1.50Hp-1100Watt
Voltage: 220 Volt/50 Hz
Pressure Adjustment: Pressure Switch
Inlet Diameter Φ: 1"-25mm
Outlet Diameter Φ: 1"-25mm
Max Performance: 55.00
Max Flow: 4.20 m3/h
Body Material: Cast Iron
Impeller Material: Bronze
Automatic Priming: Yes
Suction Lift: 9 meters
Pumped Liquid Temperature: 40°C
Ambient Temperature: 40°C
Power Supply: Electric Current
Tank Arrangement: Horizontal
Capacity: 100 Lt
- Power Source
- Single Phase
- Maximum Suction Height
- 55 m
- Horsepower
- 1.5 hp
- Power
- 1100 W
- Maximum Supply
- 4.2 m³/h
- Container Capacity
- 100 lt
- Inverter
- No
- Container
- Horizontal
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
