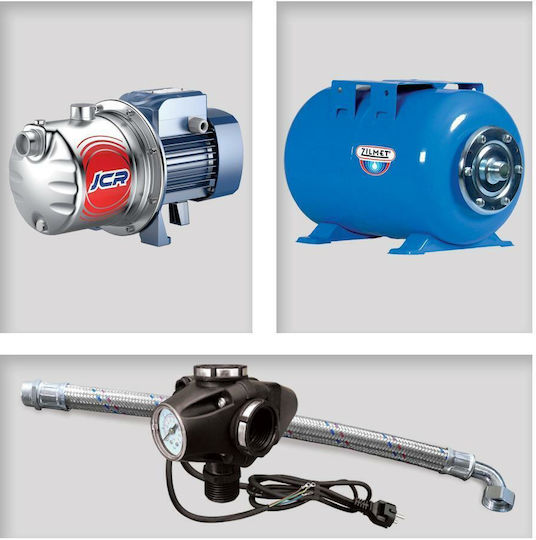

• Pump
• Expansion tank
• Pressure switch kit with manometer
• Flexible hose

For the proper protection of the system, a water deficiency guard is required.

Type: JCRm2C

Pump Type: JET

Capacity (hp-Watt): 1Hp-736Watt

Voltage (Volt): 220 Volt/50 Hz

Pressure setting: Pressure switch

Inlet diameter Φ (Inch-mm): 1" / 25mm

Outlet diameter Φ (Inch-mm): 1" / 25mm

Max Head (M): 50.00

Max Flow rate (m3/h): 4.20

Body material: Stainless steel AISI 304

Impeller material: Stainless steel AISI 304

Automatic suction (M): Yes

Suction lift (M): 9

Pumped liquid temperature (°C): 40

Ambient temperature (°C): 40

Power supply: Electric current

Tank arrangement: Horizontal

Capacity (Lt): 50
