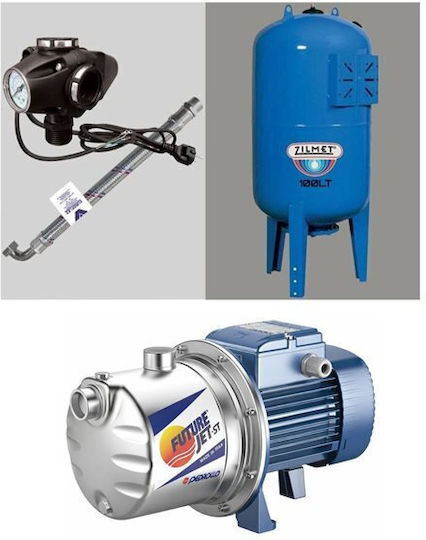

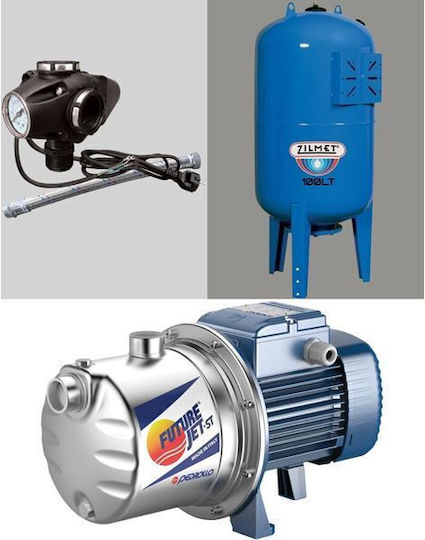

The pressure unit consists of:
- Pump
- Expansion vessel
- Pressure switch kit with manometer
- Flexible hose
For the proper protection of the system, a water shortage protector is needed.
Type: JCRm2C
Pump Type: JET
Power (hp-Watt): 1Hp-736Watt
Voltage (Volt): 220 Volt/50 Hz
Pressure Adjustment: Pressure switch
Inlet Diameter Φ (Inch-mm): 1"-25mm
Outlet Diameter Φ (Inch-mm): 1"-25mm
Max Performance (M): 50.00
Max Flow Rate (m3/h): 4.20
Body Material: Stainless steel AISI 304
Impeller Material: Stainless steel AISI 304
Automatic Suction (M): Yes
Suction Capacity (M): 9
Pumped Liquid Temperature (°C): 40
Ambient Temperature (°C): 40
Power Supply: Electric Current
Vessel Arrangement: Vertical
Capacity (Lt): 100
- Power Source
- Single Phase
- Maximum Suction Height
- 50 m
- Horsepower
- 1 hp
- Power
- 750 W
- Maximum Supply
- 4.2 m³/h
- Container Capacity
- 100 lt
- Inverter
- No
- Container
- Vertical
