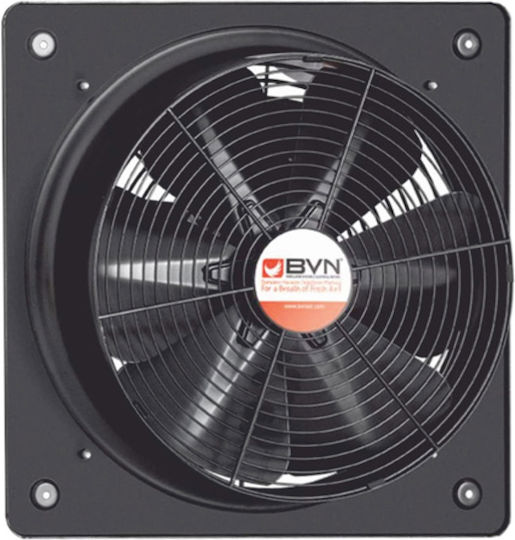

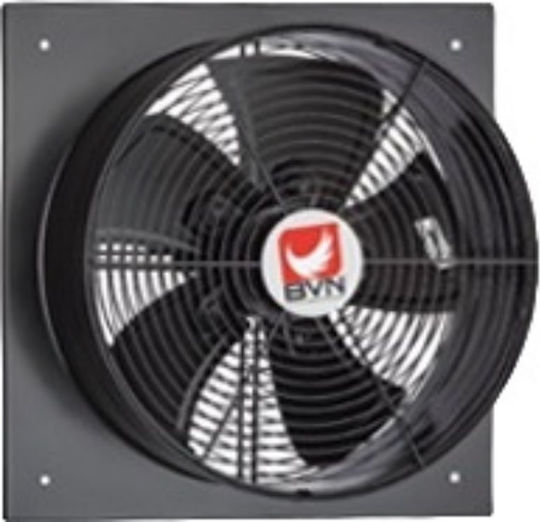

Axial Cooling Fan
- Material: Housing and impeller made of electrostatically painted metal sheets
- Rotation: Right-handed direction
- Insulation Class: B
- Protection Rating: IP44
- Certificates: CE, ISO
- Applications: Ventilation of commercial spaces, factories, paint warehouses, shopping centers

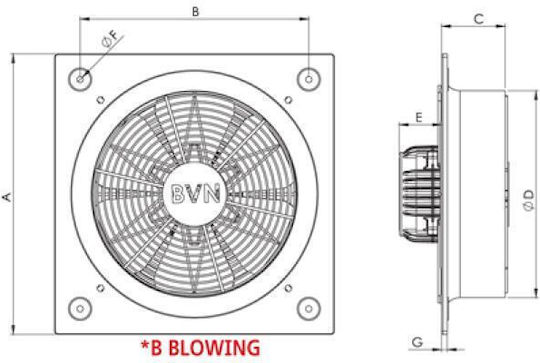

- Dimensions (mm): A412 B336 C80 D307 E80 F8 G10
- Voltage V/Hz: 230 50/60Hz
- Input Power W: 165
- Speed r/min: 1450
- Air Flow m³/h: 2000
- Noise Level db: 48
- Capacitance μF: 3.0
- Weight Kg: 7.0
- Product Number
- 01.031.0327
- Type
- Axial
- Output Voltage
- Single-phase
