- 850W motor power: Reliable brushed motor for high performance in every metal cut.
- Electronic speed control: Maintains a constant cutting speed of 60 and 80 m/min.
- Die-cast aluminium frame: Sturdy, durable, lightweight construction for maximum stability.
- Safe and clean dry cutting: Operates without fluids for clean, immediate results.
At a glance
- 850W motor power: Reliable brushed motor for high performance in every metal cut.
- Electronic speed control: Maintains a constant cutting speed of 60 and 80 m/min.
- Die-cast aluminium frame: Sturdy, durable, lightweight construction for maximum stability.
- Safe and clean dry cutting: Operates without fluids for clean, immediate results.
Consistent Power and Electronic Control
Complete demanding tasks with the 850W motor and choose a speed between 60 and 80 m/min. The electronic controller maintains a constant speed even under load, ensuring smooth cutting through any metal profile. Handle every application with complete confidence and achieve excellent results without any loss of power.
Cutting precision and ideal tension
Cut rectangular profiles precisely up to 120 x 115 mm at 0° and 85 x 70 mm at 45°. Easily adjust the blade tension with the clutch-operated tensioning device. Use the adjustable 500 mm bar for repeat cuts of the same length, ensuring perfect geometry on every workpiece with ease.
Sturdy frame and clean, dry cutting
Work in a clean environment without coolant, enjoying safe, fast dry cutting. The durable cast-aluminum frame offers excellent stability while reducing vibration. With a net weight of just 17 kg, you can easily transport the saw to any workplace while maintaining top professional precision.
Technical Specifications

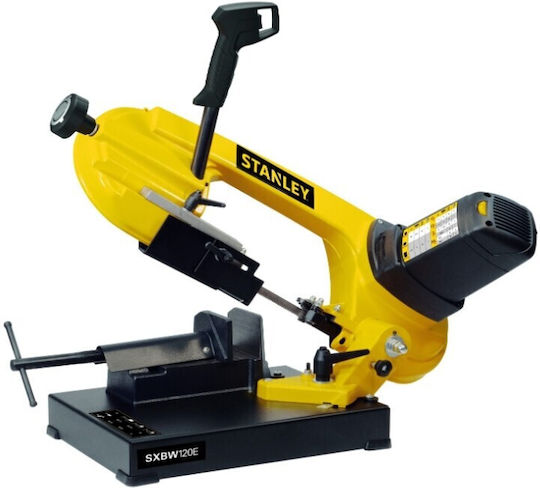

- Model: Stanley SXBW120E
- Product code: SXBW120E
- Motor type: Single-phase 1~ with carbon brushes
- Motor power: 850 W (0.85 kW)
- Power supply: 230 V - 50 Hz
- Cutting speed: 60 / 80 m/min
- Speed adjustment: Electronic speed controller for constant speed
- Blade dimensions: 1335 x 13 x 0.65 mm
- Blade tooth pitch: 8/12
- Cutting type: Dry cutting
- Frame material: Cast aluminium
- Maximum cutting capacity @ 0° (Rectangular): 120 x 115 mm
- Maximum cutting capacity @ 0° (Round): Ø 120 mm
- Maximum cutting capacity @ 0° (Square): 119 x 119 mm
- Maximum cutting capacity @ 45° (Rectangular): 85 x 70 mm
- Maximum cutting capacity @ 45° (Round): Ø 85 mm
- Maximum cutting capacity @ 45° (Square): 80 x 80 mm

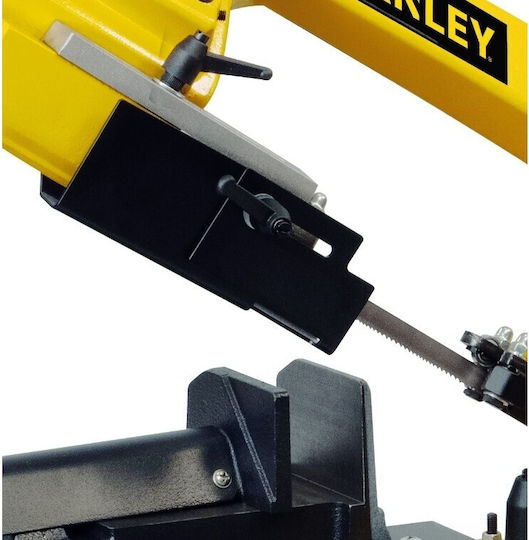

- Blade tensioning system: With clutch for proper tension
- Cutting length guide: Adjustable 500 mm L-bar
- Net weight: 17 kg
Package Contents
- Stanley SXBW120E metal band saw
- Band saw blade (1335 x 13 x 0.65 mm, 8/12)
- Adjustable cutting series bar L 500 mm
Dimensions
- Type
- Countertop
- Power Supply
- Electric
- Power
- 0.75 kW
- Brushless
- No
- Weight
- 17 kg
Tire Specifications
- Belt Speed
- 80 m/min
- Band Length
- 1440 mm
- Cutting Depth
- 120 mm
