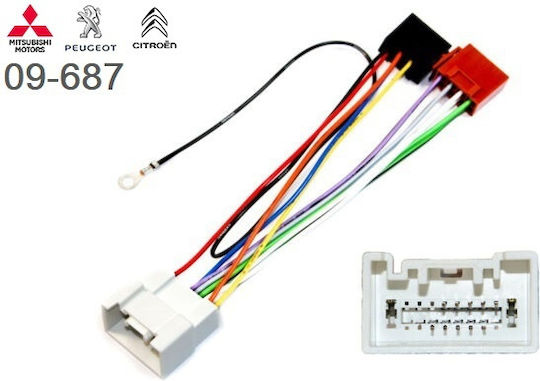

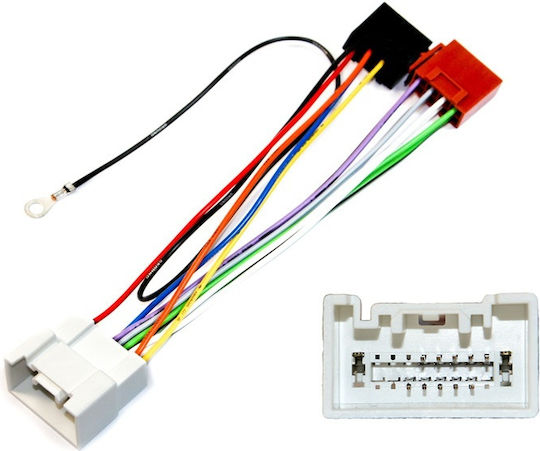

ISO Harness Adapter for Citroen / Fiat / Mitsubishi / Peugeot.

The ISO wiring adapters are used for the passive connection of regenerative devices to the factory sockets found at the radio installation area.

Depending on the vehicle and equipment, the following signals are provided:

• 12V permanent power
• 12V ignition
• Ground
• Illumination
• Remote antenna signals
• Speaker connection for front and rear speakers

For vehicles with different equipment, signals that are not available may need to be connected to appropriate points of the vehicle (e.g., fuse box) or additional adapters/interfaces may be used, such as:

• CAN bus interfaces
• LFB interfaces
• Enhanced system adapter
• Camera adapter

Signals must be checked before connection.

Note: Connector: 20 Pin Nissan, vehicles without Rockford Fosgate amplified system, vehicles without MMCS OEM Sat Nav.

Vehicle application:

• Citroen C-Crosser 2007 - 2013
• Citroen C4 Aircross (B) 2012 - 2017
• Fiat Fullback 2016 - 2020
• Mitsubishi ASX (GA0) 07/2010 - 2021
• Mitsubishi Lancer (CSO) 2007 - 2017
• Mitsubishi L200 (KAOT) 2015 - 2021
• Mitsubishi Montero (4th Generation) 2007 - 2013
• Mitsubishi Outlander (CWB) 2007 - 2021
• Mitsubishi Pajero (V80) 2010 - 2018
• Mitsubishi Shogun (V80) 2010 - 2018
• Mitsubishi Space Star 2015 - 2021
• Mitsubishi Triton 2015 - 2021
• Peugeot 4007 2007 - 2012
• Peugeot 4008 2012 - 2017
