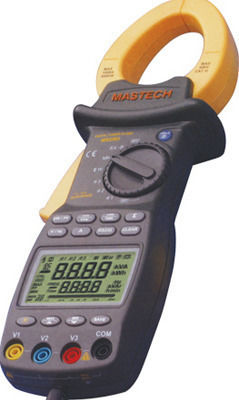

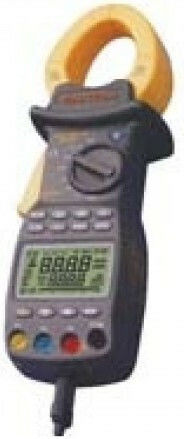

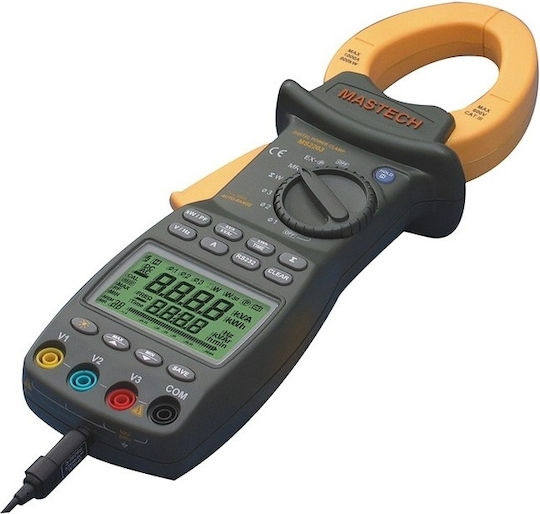

Mastech MS2203 Clamp Meter Digital 1000A AC 02.025.0010
Clamp Meters

Mastech MS2203 Clamp Meter Digital 1000A AC 02.025.0010

Clamp meter specialized for measuring power & power factor

  • Data collection & processing from all 3 phases (With 3 different measurements)
  • Measurement of 5 different power values (active, total, etc.)
  • ...

Clamp meter specialized for measuring power & power factor

  • Data collection & processing from all 3 phases (With 3 different measurements)
  • Measurement of 5 different power values (active, total, etc.)
  • Measurement of power factor (each phase & total)
  • Energy consumption of household appliances
  • Connection to PC online or processing of stored measurements
  • MIN/MAX...
See full description See full description
430 97 €
431 Coins 431 Coins
Delivery by Thu, 01 Oct
Free   shipping cost
From Time4shoes 4.8 (4)
4.8 (4 reviews)
Άργος, Αργολίδας
4 pieces
See Multimeters on the page of Time4shoes
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

Clamp meter specialized for measuring power & power factor

  • Data collection & processing from all 3 phases (With 3 different measurements)
  • Measurement of 5 different power values (active, total, etc.)
  • Measurement of power factor (each phase & total)
  • Energy consumption of household appliances
  • Connection to PC online or processing of stored measurements
  • MIN/MAX measurement
  • Auxiliary lighting
  • Maximum conductor cross-section: Φ50mm
  • AC current: 40/ 100/ 400/ 1000A±2%
  • AC voltage: 100/ 300/ 600V±1.2%
  • Active power: 4/ 10/ 40/ 100/ 600kW±3%
  • Power (VA): 4/ 10/ 40/ 100/ 600kVA±3%
  • Power factor (PF): 0.3 cap to 0.3 ind±0.02
  • Reactive power (KVAR): 4/ 10/ 40/ 100/ 600kVAR±4%
  • Active energy (kWh): 10/ 100/ 1000/1 0000kWh±3%
  • Frequency (Hz): 20Hz-1000Hz 0.5%
  • Display: 4 DIGITS LCD 9999
  • Power supply: 4X1.5V AA
  • Operating temperature: 0°C-40°C
  • Dimensions: 300x103x51mm
  • Weight: APPROX. 500g

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

with Test Leads
No
AC Current
1000 A
Indication
Digital
Bluetooth
No
ISO/NIST Calibration Certificate
Yes

Features & Functions

Inrush Current
-

Inrush Current

Ability to record the instantaneous inrush current (duration ~100ms) absorbed by electric motors, motor-driven devices, and compressors during their momentary startup.
True RMS
No
NCV
No
LoZ (Low Impedance / Low Impedance)
-

LoZ (Low Impedance / Low Impedance)

Low impedance function that absorbs induced/parasitic voltages ("phantom" voltages or ghost voltages) from adjacent cables, ensuring that you measure only the actual line voltage.
VFD Mode / LPF (Low Pass Filter)
-

VFD Mode / LPF (Low Pass Filter)

Integrated low-pass filter that cuts off high-frequency harmonic noise (PWM) produced by variable speed drives, allowing accurate voltage and frequency measurement in Inverters.
Temperature Measurement
Yes

Temperature Measurement

Ability to measure temperature via a connected thermocouple (Type-K terminal), allowing temperature monitoring of pipes, refrigerants, and HVAC components.
Capacitor Capacitance Measurement
Yes

Capacitor Capacitance Measurement

Ability to test and measure capacitor capacitance, allowing the immediate diagnosis of worn starting capacitors in motors, pumps, and compressors.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

1 user has this product and can help you

Ask for the product

Description & Specifications

Clamp meter specialized for measuring power & power factor

  • Data collection & processing from all 3 phases (With 3 different measurements)
  • Measurement of 5 different power values (active, total, etc.)
  • Measurement of power factor (each phase & total)
  • Energy consumption of household appliances
  • Connection to PC online or processing of stored measurements
  • MIN/MAX measurement
  • Auxiliary lighting
  • Maximum conductor cross-section: Φ50mm
  • AC current: 40/ 100/ 400/ 1000A±2%
  • AC voltage: 100/ 300/ 600V±1.2%
  • Active power: 4/ 10/ 40/ 100/ 600kW±3%
  • Power (VA): 4/ 10/ 40/ 100/ 600kVA±3%
  • Power factor (PF): 0.3 cap to 0.3 ind±0.02
  • Reactive power (KVAR): 4/ 10/ 40/ 100/ 600kVAR±4%
  • Active energy (kWh): 10/ 100/ 1000/1 0000kWh±3%
  • Frequency (Hz): 20Hz-1000Hz 0.5%
  • Display: 4 DIGITS LCD 9999
  • Power supply: 4X1.5V AA
  • Operating temperature: 0°C-40°C
  • Dimensions: 300x103x51mm
  • Weight: APPROX. 500g

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

with Test Leads
No
AC Current
1000 A
Indication
Digital
Bluetooth
No
ISO/NIST Calibration Certificate
Yes

Features & Functions

Inrush Current
-

Inrush Current

Ability to record the instantaneous inrush current (duration ~100ms) absorbed by electric motors, motor-driven devices, and compressors during their momentary startup.
True RMS
No
NCV
No
LoZ (Low Impedance / Low Impedance)
-

LoZ (Low Impedance / Low Impedance)

Low impedance function that absorbs induced/parasitic voltages ("phantom" voltages or ghost voltages) from adjacent cables, ensuring that you measure only the actual line voltage.
VFD Mode / LPF (Low Pass Filter)
-

VFD Mode / LPF (Low Pass Filter)

Integrated low-pass filter that cuts off high-frequency harmonic noise (PWM) produced by variable speed drives, allowing accurate voltage and frequency measurement in Inverters.
Temperature Measurement
Yes

Temperature Measurement

Ability to measure temperature via a connected thermocouple (Type-K terminal), allowing temperature monitoring of pipes, refrigerants, and HVAC components.
Capacitor Capacitance Measurement
Yes

Capacitor Capacitance Measurement

Ability to test and measure capacitor capacitance, allowing the immediate diagnosis of worn starting capacitors in motors, pumps, and compressors.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
