The Televes 519508 is an ALL-BAND 8-output splitter, made of Zamak metal alloy, with DC pass from the outputs to the input. It features F connections all on one side for easy cable connection with F connectors, as well as a 10-degree tilt during installation, facilitating the screwing of F connectors onto the splitter.

Signal attenuation when passing through the splitter is very low, thanks to the circuit design using micro-materials that enhance its performance, while the Zamak alloy housing provides Class A electromagnetic shielding. It is designed for installation indoors as well as on a rack cabinet rail.

• Class A shielding. Made from Zamak metal alloy for electromagnetic shielding and corrosion protection.
• Easy screwing of F connectors, thanks to the 10-degree tilt during installation. It also allows cable routing behind the F connections.

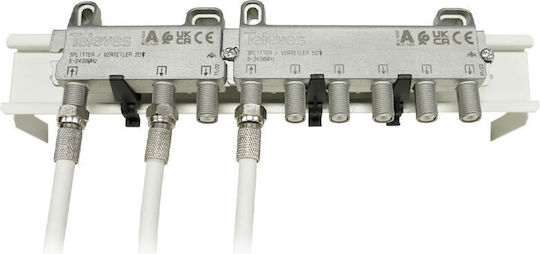

• Splitters in this series can be connected together at the grounding point, for space-saving and aesthetic benefits.
• Improved performance over the frequency curve, resulting in lower signal losses.

• Frequency Range MHz: 5 ... 2400
• Output Split: 8
• Inputs/Bands: TERRESTRIAL & SATELLITE
• Insertion Loss up to: dB 15 (Terrestrial) & 14 (Satellite)
• Isolation between outputs: dB >20 (Terrestrial), >20 (Satellite)
• DC passing from Outputs to Input (maximum): Vdc 24 / mA 350
• Dimensions W / H / D: 176 / 59 / 18 millimeters
