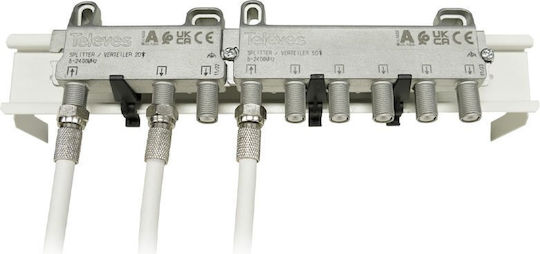

The Televes 519502 is an ALL-BAND 2 Output splitter, made from a Zamak metal alloy, with DC pass from the Outputs to the Input. It features F connections all on one side for easy cable connection with F plugs, with a 10-degree tilt during installation for ease of screwing in the F plugs.

The signal attenuation during passage through the splitter is very low, thanks to the circuit construction with micro-materials, improving its performance. Its Zamak alloy housing provides Class A electromagnetic shielding. It is designed for installation indoors as well as on a rack mount rail. Outdoors, it can be installed within a 4163 enclosure.

• Class A shielding. Made from a Zamak metal alloy for electromagnetic shielding and anti-corrosion protection.
• Easy screwing of F plugs with a 10-degree tilt during installation.
• Ability to connect splitters in the series at the grounding point for space saving and aesthetics.
• Improved performance across the frequency curve, for lower signal losses.

Technical Specifications:

• Frequency Range MHz: 5 ... 2400
• Branching Outputs: 2
• Inputs/Bands: TERRESTRIAL & SATELLITE
• Pass losses up to: dB 5 (Terrestrial) & 4 (Satellite)
• Isolation between outputs: dB >20 (Terrestrial), >20 (Satellite)
• DC pass from Outputs to Input (maximum): Vdc 24 / mA 350
• Dimensions W / H / D: 74 / 59 / 18 mm
