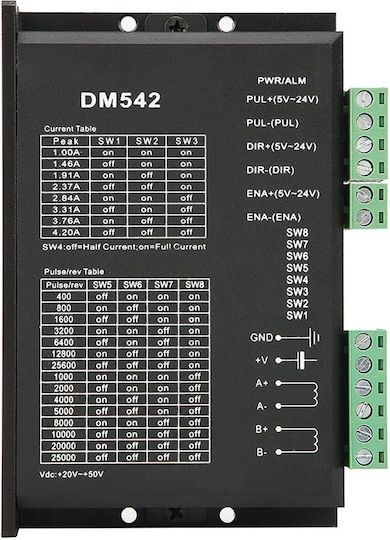

The DM542 digital stepper motor driver incorporates the latest 32-bit technology, suitable for driving 57 and 86 series motors. It offers excellent performance at medium and low speeds and meets the application needs of most medium and small devices.

Features:

• Built-in automatic parameter tuning function, which can automatically generate optimal operating parameters for various motors.
• Can drive a 2-phase stepper motor with 4 or 8 wires.
• Stable operation and low noise at medium and low speeds.
• Precise current control that significantly reduces motor heat.
• Optical isolation for input signal, strong resistance to interference.
• With protection against surges and overcurrents.

Specifications:

• Model: DM542
• Input Voltage: 18-48VDC, 24V (Typical)
• Output Current: 1.0-4.2A
• Pulse response frequency: 200kHz (Maximum)
• Insulation resistance: ≥500MΩ
• Subdivision range: 400~25600ppr
• Weight: Approximately 268g / 9.4oz

Package includes:

• 1 x Stepper Motor Driver
