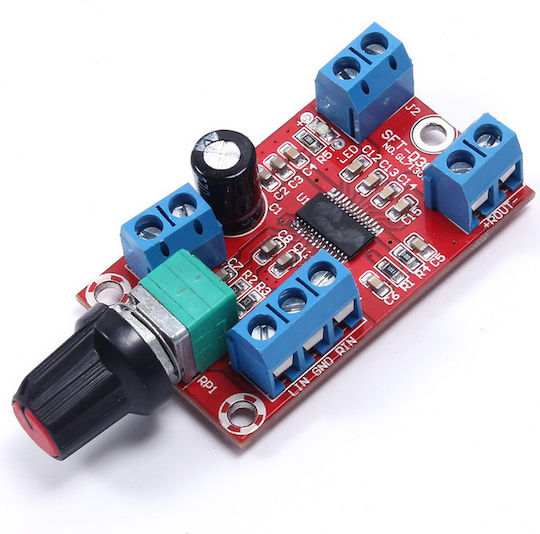

SFT-D302 Double Digital Amplifier Board
- Name: 30W*2 Digital Amplifier Board Capacity
- Function: Class D (PWM modulation)
- Channel Type: dual track
- Power Supply: single-phase DC 7.5-24V with 2A or more
- Output Capacity: 15-30W*2 (4-8 ohm)
- Signal-to-Noise Ratio: 102dB
- Operating Temperature: -40 to 85 Celsius
- Static Current: 12V supply, 11MA
- Size: 50*30*15mm (without handle)
Features:
- Small volume: 50*30*15 (without handle)
- High Capacity: adapts to stage amplifiers 100-300W without distortion
- Clear sound: high signal-to-noise ratio, strong analytical capability, wide dynamic range
- Output short-circuit protection: after resolving unwanted operation, can operate again immediately
- Low heat emission: with 12V power supply, can operate continuously
- High operating efficiency: low static power consumption, 11MA
- Base material 1.6mm hard FR-4 double board
- Type
- -
- Channels
- -
- Packaging
- 1 pcs
- Operating Voltage
- 12 V
- Power per Channel
- -
- Bluetooth
- -
- Ecosystem
- -
- Type
- -
- Class
- -
- Integrated (Chip)
- -
