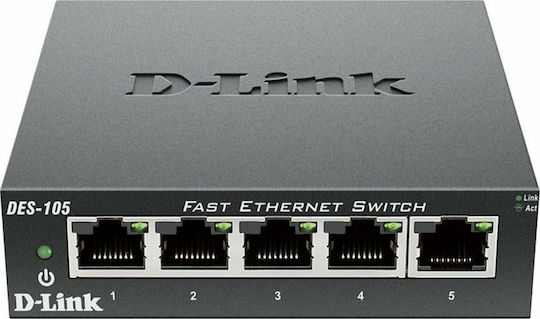

The D-Link DES-105 switch connects up to 5 devices to a wired Ethernet network for sharing files and an Internet connection at home or in a small office. It is an unmanaged Layer 2 switch with 10/100 Mbps ports that automatically detect the connection speed and support automatic negotiation of full- or half-duplex operation. Auto MDI/MDIX allows connections using standard Ethernet cables, without a crossover cable.
It supports IEEE 802.3az Energy Efficient Ethernet (EEE), which puts a port into standby when there is no Ethernet traffic or the connected computer is turned off. Each port has two LED indicators for connection status.
- Ethernet ports: 5, with 10/100 Mbps speeds
- Type: Unmanaged switch
- Layer: Layer 2
- Switching fabric: 1 Gbps
- Rack-mountable: Yes
- Mounting: Desktop or wall-mounted
- Auto-negotiation: 10/100 Mbps speed and full- or half-duplex operation
- Auto MDI/MDIX: On all ports
- Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, ANSI-IEEE 802.3 NWay, IEEE 802.3az Energy Efficient Ethernet (EEE)
- Protocol: CSMA/CD
- Ethernet data transfer rate: 10 Mbps in half-duplex and 20 Mbps in full-duplex mode
- Network topology: Star
- Network cables: UTP CAT 3, 4, 5 or 5e for 10BASE-T, up to 100 m, and EIA/TIA-586 100-ohm STP

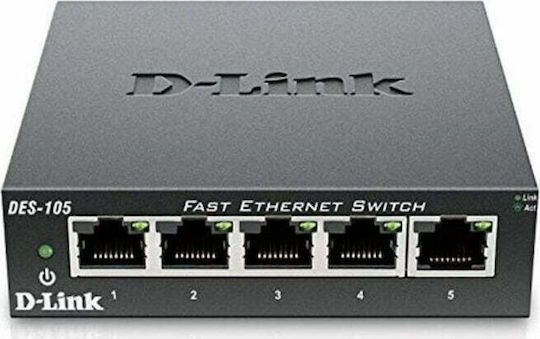

- LED indicators: 2 per port, for link and activity
- Transmission method: Store-and-forward
- MAC address table: 2,000 entries
- MAC address learning: Automatic update
- Packet filtering and forwarding rate: 14,880 pps per Ethernet port
- RAM: 384 KBytes
- Jumbo frames: 2047 bytes
- QoS: 2 strict-priority queues

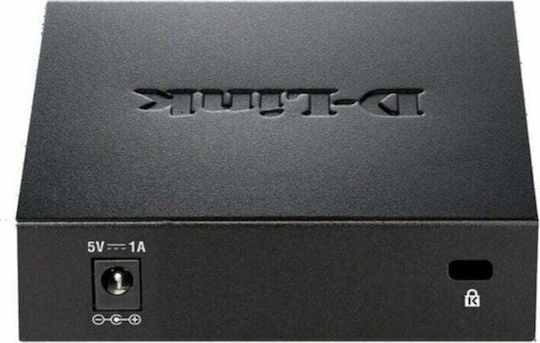

- Power supply: External 5 V / 1 A power adapter
- Standby power consumption: 0.5 W at the DC input and 1 W at the AC input
- Maximum power consumption: 2.01 W at the DC input and 3.10 W at the AC input
- Heat dissipation: 3.41 BTU/h in standby at the AC input and 6.854 BTU/h at maximum operation at the DC input
- MTBF: 495,709 hours
- Operating temperature: 0–50 °C
- Storage temperature: −10–70 °C
- Operating humidity: 10–90% RH, non-condensing
- Storage humidity: 5–90% RH, non-condensing
- Dimensions: 100 × 98 × 28 mm
- Weight: 265 g
- Certifications: FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B
- Package contents: Switch, power adapter, quick installation guide and wall-mounting hardware
Network Specifications
- Type
- Unmanaged
- Layer
- L2
- PoE
- No
Technical Specifications
- Ethernet connections
- 5 Port
- Ethernet Speed
- 100 Mbps
- Switching Speed
- 1 Gbps
- MAC Address Table
- 2000 entries
- Rack mounting
- Yes
