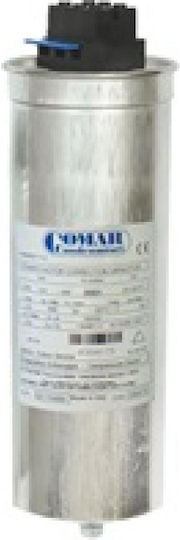

The CTB Series three-phase power factor correction capacitor is dry-type and features a harmonic filter. It uses a metallized polypropylene film (MKP) dielectric and is designed for vertical installation.
- Type: Three-phase
- Rated operating voltage: 440 VAC
- Capacitance: 3 × 13.7 μF
- Power: 2.5 kVAR
- Current: 3.2 A
- Terminals: FASTON 6.3
- Service life: 130000 h
- Capacitance tolerance: -5% to +10%
- Operating temperature range: -25 °C to +50 °C
- Dimensions (diameter × height): 70 × 175 mm
- THD (I)max: 10%
- Installation: Vertical
- Standards: IEC EN60831-1:2015, IEC EN60831-2:2015
- Certifications: CE, ISO14001-2004, ISO900-2015, ISO18001-2007
- Type
- Three-phase
- Voltage
- 440 V
