CUDY POE15 Gigabit POE+ Outdoor Waterproof Extension, IP67

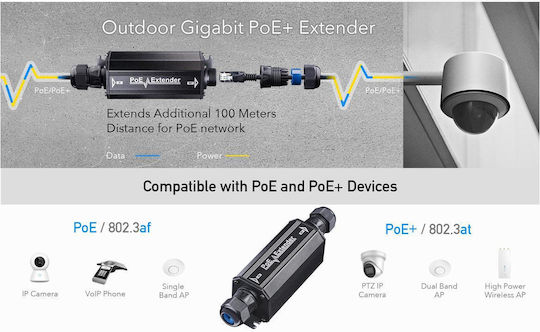

• Compatible with IEEE802.3af and IEEE802.3at

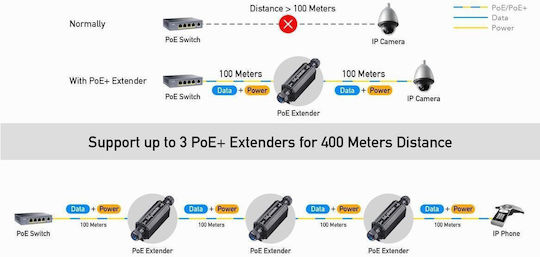

• Extends the range of PoE and Ethernet by 100 meters
• No additional power supply required
• Automatic detection and protection of PoE devices from damage due to incorrect installation
• Full network speed over the extended distance
• Compact size, wall design
• Easy plug-and-play installation
• Meets EMI standards FCC, CE class B

Gigabit Ports

• PoE+ input port 10/100/1000Mbps and PoE+ output port 10/100/1000Mbps

Wall Design

• The wall design facilitates network deployment
• Installation in any position for stability and to prevent damage

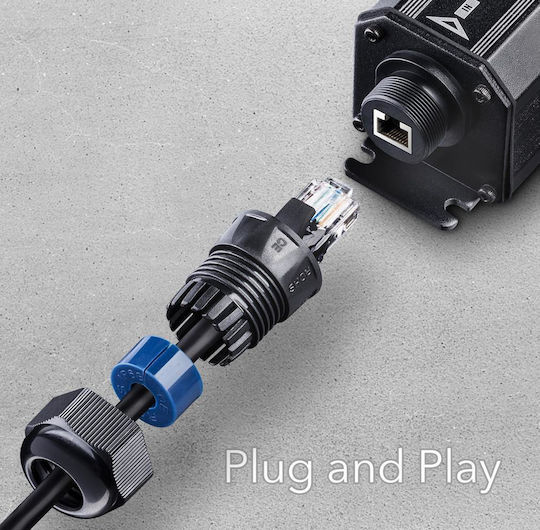

Plug and Play

• No additional settings required
• No external power supply needed

Specifications

• Product Name: POE15
• Number of Channels: 1 (PoE IN) to 1 (PoE OUT)
• Available Data Passing Speeds: 10/100/1000 Mbps
• Power over Ethernet Input: Pinout and polarity
• Power over Ethernet Output: Pinout and polarity: Up to 25W
• Indicators: LED indicators on RJ45 port
• Connections: Shielded RJ-45, EIA 568A and 568B
• Network Interface: Shielded Category 5 cables (or higher)
• Dimensions: 185mm x 45mm x 45mm
• Installation: Wall or shelf
• Environment: Indoor or outdoor
• Environmental Conditions: Operating temperature: -25 to 55℃
• Storage Conditions: Storage temperature: -30 to 70℃
