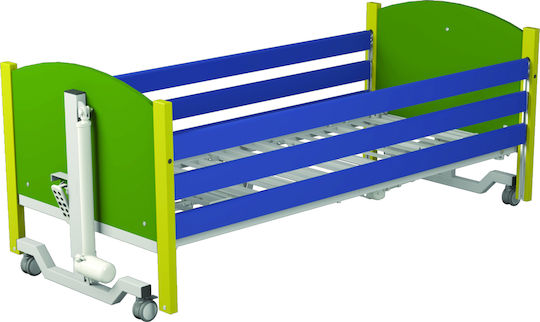

Electric Children's Bed “KIDS”

• Mattresses: (not included)
• Children's Foam & Latex Mattress, code 0806616
• Children's Foam Mattress, code 0806617

Technical Specifications:

• 4 separate sections (adjustable head and leg sections)
• Electrically controlled backrest and thigh support
• Mechanically adjustable lower limb section
• Automatic contouring – simultaneous adjustment of the backrest and knee support sections
• Variable bed height and downward tilt of the legs, electrically controlled
• Lockable controller (remote control)
• Can be disassembled into four separate parts for storage and/or transport
• 3 Full-length wooden side rails
• Transport base for convenience in storage and transport of beds
• Electrical system with protection rating IPX4 – Resistant to water spray

• Total length: 2080 mm
• Total width: 930 mm
• Mattress platform height: 190-610 mm
• Clearance under bed (to bottom of the frame): 255 mm
• Clearance under bed (to bottom of the actuator): 127 mm
• Mattress platform length: 1900 mm
• Mattress platform width: 780 mm
• Backrest support section: 0 – 74°
• Thigh section tilt: 0 – 34°
• Maximum height of lower leg section: 138 mm
• Reverse tilt position Trendelenburg: 0 – 12°

• Total bed weight: 88 kg
• Total bed weight on transport base (excluding side rails): 75 kg
