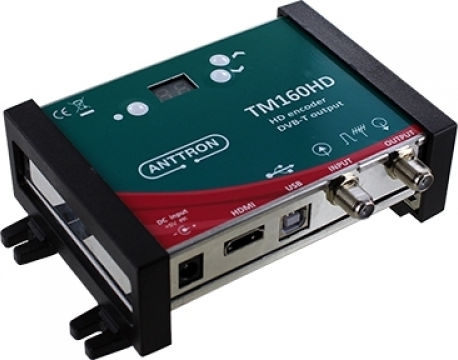

The ANNTRON TM160HD modulator converts an HDMI signal to DVB-T and integrates it into a TV system. It receives an HD signal via HDMI, encodes it and modulates it onto a DVB-T COFDM channel.

It supports resolutions from 480p to 1080p and H.264 video compression. Audio is input via HDMI and compressed using AAC-LC or MPEG1-L2. DVB processing includes the insertion of PAT, PMT, SDT and NIT tables, while the configuration options allow channel and network settings to be adjusted.

• Type: Modulator
• Video input: HDMI
• Video resolution: 480p, 576p, 720p, 1080i, 1080p
• Video compression: H.264, bitrate 5–15 Mb/s
• Audio input: HDMI
• Audio sampling rate: 32 kHz, 44.1 kHz, 48 kHz
• Audio compression: AAC-LC, MPEG1-L2, bitrate 128–384 Kb/s
• DVB processing: Insertion of PAT, PMT, SDT and NIT tables
• Settings: Channel and network name, SID, LCN, TSID, ONID, NID, versions, audio and video PIDs
• Output: DVB-T
• Output frequency: 170–230 MHz and 470–862 MHz
• Output level: > 85 dBμV
• Modulation: QPSK, 16QAM, 64QAM
• FEC: 1/2, 2/3, 3/4, 5/6, 7/8
• Guard interval: 1/4, 1/8, 1/16, 1/32
• Mode: 2K, 8K
• MER: 31 dB
• Power supply: +5 V via 2.1 mm DC jack
• Power consumption: 10 W
• Dimensions: 150 × 130 × 35 mm
• Weight: 0.45 kg
