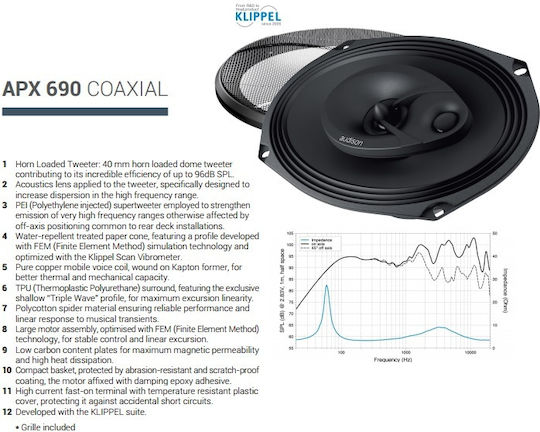

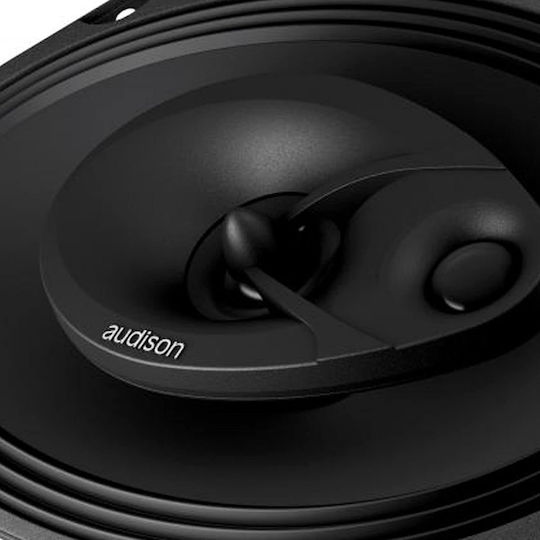

The APX 690 features an exclusive 40 mm tweeter horn, contributing to maximizing efficiency up to 96dB SPL. It has an acoustic lens specifically designed to increase dispersion in high-frequency areas. To enhance the emission of very high frequencies affected by off-axis placement compared to the listening point, the APX 690 features a supertweeter.
- Technical Specifications:
- Comp Tree way coaxial
- Woofer Size: 6″ x 9″
- Tweeter Diaphragm: 40 mm (1.58″)
- Super Tweeter Diaphragm: 15 mm (0.6″)
- Power Handling: 100 W (Continuous Power)
- 300 W (Peak Power)
- Impedance: 4 Ω
- Frequency Response: 40 ÷ 23k Hz
- Sensitivity: 96 dB/Spl
- Magnet: High-density flux ferrite
- Dome: Water-resistant, pressed paper
- Product Number
- 01.01.0011
Dimensions
- Type
- 3 Way
- Shape
- Oval
- Speaker Dimensions
- 6x9 "
Technical Specifications
- Power (RMS)
- 100 W
- Nominal Impendance
- 4 ohm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
