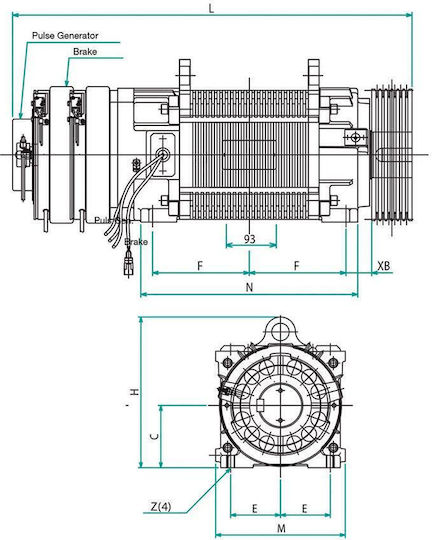

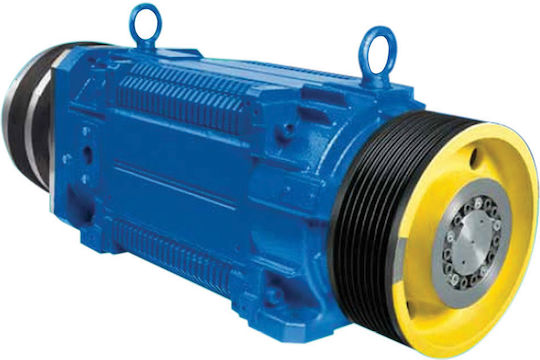

The three-phase electric motor 03.067.0002 is designed for traction elevators with the traction sheave connected directly to the motor. It is powered at 400 V, 50/60 Hz, with input from an inverter. Its speed reaches up to 2 m/s, and its lifting capacity is 630 kg.
- Type: Three-phase electric motor
- Voltage: 400 V
- Frequency: 50/60 Hz
- Power supply: Input from inverter
- Lifting capacity: 630 kg
- Speed: Up to 2 m/s
- Power: 6.8 kW
- Maximum rated torque: 200
- Thermal class: F
- Enclosure: Totally enclosed, self-cooling (IEC)
- Protection rating: IP44
- Brake: Electromagnetic
- Ambient temperature: From -10 °C to 40 °C
- Maximum altitude: 1,000 m
- Product Number
- 03.067.0002
- Type
- Electric motor
- Voltage
- 400 V
