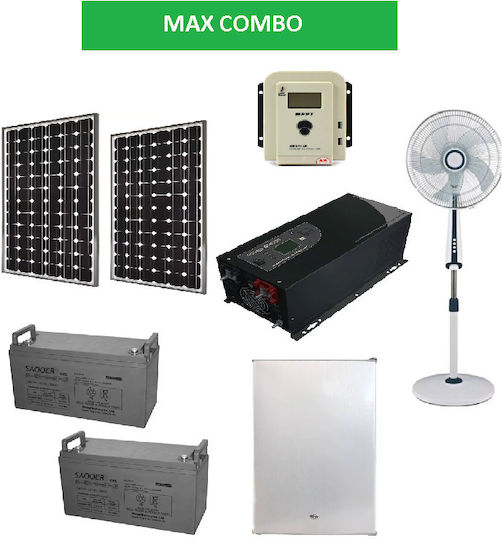

The MAX COMBO package is aimed at small vacation homes and caravans and includes:

• 200W 12V Ideasolar Monocrystalline Solar Panel (2pcs)
• 12-24V 95L Jarrett BC-95 Refrigerator – Silver (1pc)
• Power Star W8 CX15201 Pure Sine Wave Inverter 12V 1500W and Charger (1pc)
• MPPT 20ah 12/24v SYP-2007 Charge Controller (1pc)
• 12V 18W Solar Fan FS-40 (1pc)
• 100AH Gel Deep Cycle Sealed Battery (2pcs)

The system operates autonomously and can ensure:

• 24-hour operation of the refrigerator
• Continuous operation of the fan for up to 5 hours
• Ability to add 12V LED lights

200W 12V Ideasolar Monocrystalline Solar Panel

• Peak Power (Pmax): 200W
• Voltage (Vm): 17.6V
• Current (Im): 11A
• Open Circuit Voltage (Voc): 21V
• Short Circuit Voltage (Isc): 12V
• Dimensions: 163x66.5x35
• Weight: 15 KG

12-24V 95L Jarrett BC-95 Refrigerator – Silver

• Voltage: 12V
• Power: 45W
• Capacity: 95L
• Refrigerant: R134a (40g)
• Dimensions: H83 x W47 x D47 cm

Power Star W8 CX15201 Pure Sine Wave Inverter 12V 1500W and Charger

• Output Voltage: 220Vac/230Vac
• Output Power: 1500W
• Peak Starting Power: 3500W
• Power Factor: 0-1.0
• Output Frequency: 60Hz/50Hz
• Weight: 10Kg
• Inverter Size: 405x215x180mm

MPPT 20ah 12/24v SYP-2007 Charge Controller

• MPPT solar charge controller rated for 260W-12V, 520W-24V
• Voltage: 12/24V
• Nominal Current: 20Ah
• Maximum Battery Voltage: 32V
• Maximum Input Voltage: 36V

12V 18W Solar Fan FS-40

• Adjustable height
• Capacity: 18W
• Voltage: 12V
• Color: Red
• 5 blades
• 3 speeds
• Timer

100AH Gel Deep Cycle Sealed Battery

• Cyclic use: 14.5 -15.0V
• Standby use: 13.6-13.8V
• Voltage: 12V
• Code: 100AH
• C20
• Specific weight: 30kg
• Sealed type GEL

Usage Instructions

• It is recommended to charge and maintain the batteries at least once a month during periods when the system will be out of operation.
• It is not recommended to use loads greater than the nominal power of the inverter.
• It is not recommended to use loads greater than the specified duration.
• It is recommended not to operate all large loads simultaneously.
• In case of loss of charge due to prolonged cloudiness, limit consumption to mainly necessary items.
