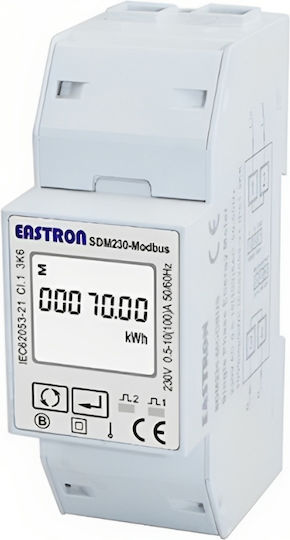

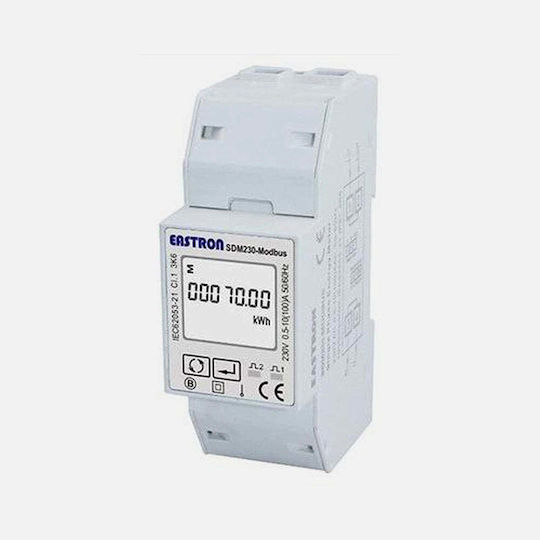

Eastron SDM230M Single-phase Panel Meter 100A MID

The SDM230Modbus is an advanced digital single-phase energy meter with multiple functions, capable of measuring up to 100A direct load. It incorporates 15 measured parameters and 4 different kWh measurement modes, designed to support renewable energy sources such as solar power and battery storage.

Product features:

• MID certification (Parts B and D)
• Single-phase input 100A
• Two-module DIN rail mounted
• Clear visible display with backlight
• Easy menu navigation
• Built-in Modbus and pulse outputs or optional Mbus interface
• Four kWh measurement modes for solar and battery applications

Displayed parameters:

• Line to neutral voltage (V)
• Line current (A)
• Frequency (Hz)
• Power factor (PF)
• Maximum demand (MD kW)
• Active power (kW)
• Reactive power (kVAr)
• Apparent power (kVA)
• Active energy import (kWh)
• Active energy export (kWh)
• Total active energy (kWh)
• Reactive energy import (kVARh)
• Reactive energy export (kVARh)
• Total reactive energy (kVARh)
• Operating hours

Certifications & Standards:

• MID: EN50470-1 & EN50470-3
• EMC: EN61326-1 & EN61326-2-3
• LVD: EN61010-1 & EN61010-2-3

Packaging contents:

• 1x Eastron SDM230M
• 1x User manual (English)
