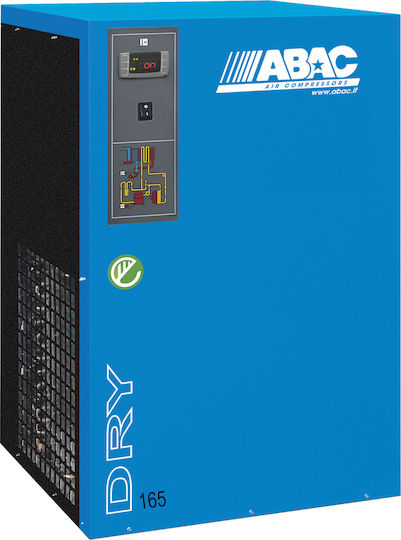

Type: Dry

Maximum pressure: 165 Bar/psi (13/188)

Cooling capacity:

• (m³/1'): 2,750
• (m³/h): 165
• (cfm): 97.1

Power: 609 W

Supply: 230/50/1 V/Hz/Ph

Connections: 1'' F

Dimensions: 370 x 500 x 764 mm (length x width x height)

Weight: 44 kg

The modern compressed air production process involves air treatment, as humidity is a component of atmospheric air. Abac refrigerated dryers remove condensates and vapors, ensuring dry compressed air and long-lasting equipment life.

Advantages:

• More economical operation of the air distribution piping network
• Longer equipment lifespan
• Higher product output with less maintenance costs
• Better quality final product
• Smart, silent water drain valve with discharge pipe
• Electricity savings due to fewer pressure drops

Abac dryers feature a "PDP" display, which shows all relevant information such as the dryer status, fan condition, and dew point. Additionally, warning messages are provided for high or low dew points and fan sensor failure.

For precise cooling under specific conditions, a number (K) is used, calculated with the relation A x B x C = K.
