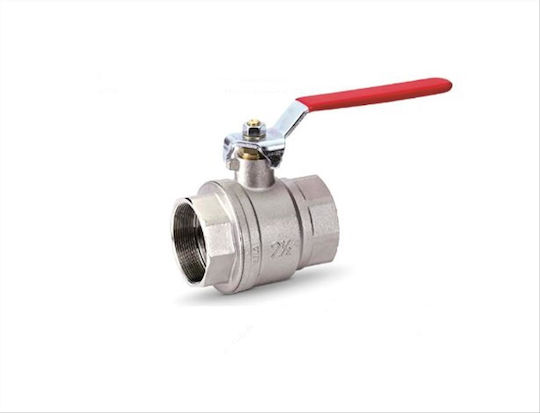

The Bonomi 2077.0004 straight ball valve is designed for water supply, heating and irrigation systems. It has a full bore, an aluminium handle and a Teflon safety stem with a double internal rubber seal. It is suitable for use with non-corrosive fluids that will not corrode the valve.
The connection has a 1-1/4" thread and complies with ISO 228. The operating temperature ranges from -10 °C to +95 °C. It is recommended that the handle be turned at least once every 3 months to prevent the formation of calcium deposits.
- Type: Ball valve
- Design: Straight
- Bore: Full
- Handle material: Aluminium
- Safety stem: Teflon
- Seal: Double internal rubber
- Thread size: 1-1/4"
- Thread specification: ISO 228
- Operating temperature: -10 °C to +95 °C
- Nominal diameter (DN): 32
- Dimensions: A 77 mm, B 64 mm, C 120 mm
- Pressure (PN): 30
- Product Number
- 2077.0004
- Shape
- Straight
- with Connector
- No
- Thread Size
- 1-1/4"
