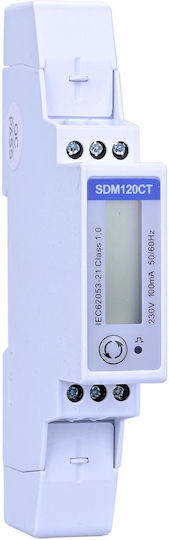

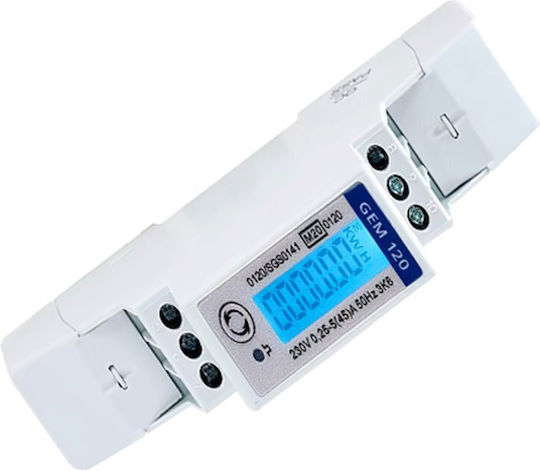

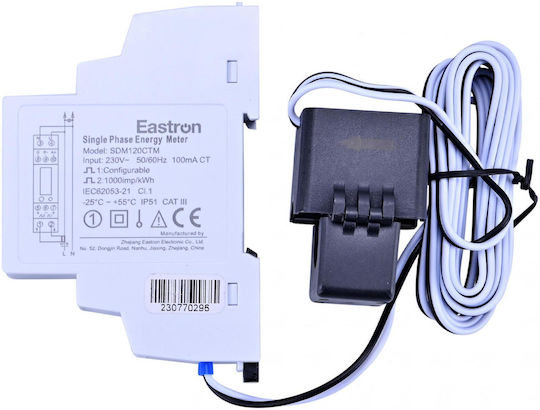

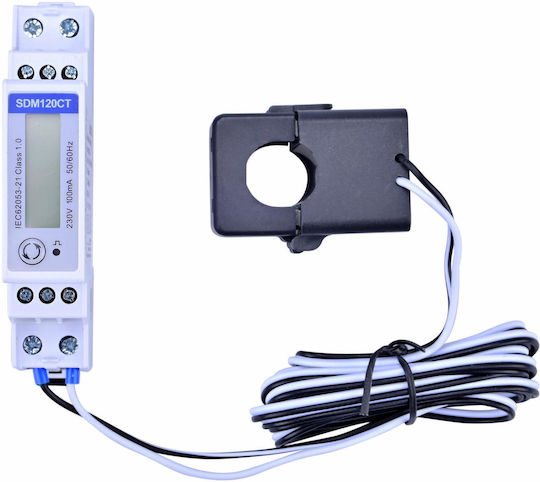

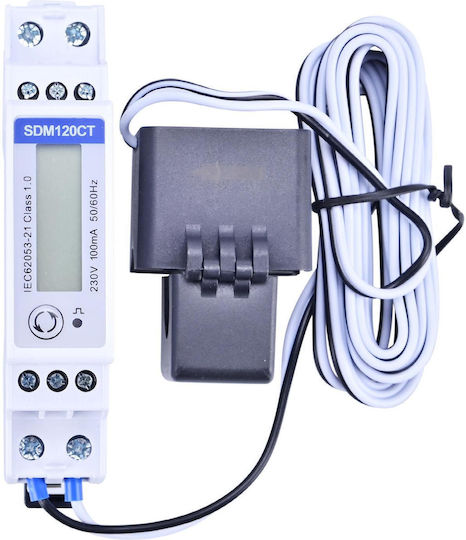

The Epsolar SDM120P energy analyzer measures energy consumption and generation in a single-phase system, with bidirectional measurement and two pulse outputs. Its backlit LCD displays kWh, W, V, A, power factor, frequency, and other values. It is DIN-rail mounted and communicates via Modbus RTU.
- Type: Energy analyzer
- Display type: Digital
- Mounting type: DIN rail
- Number of phases: Single-phase
- Connectivity: Modbus RTU via RS485
- Maximum current: 45 A
- Rated current: 5 A
- Minimum current: 0.25 A
- Starting current: 40 mA
- Rated voltage: 230 V
- Operating voltage range: 80%–120% of rated voltage
- Pulse outputs: 2

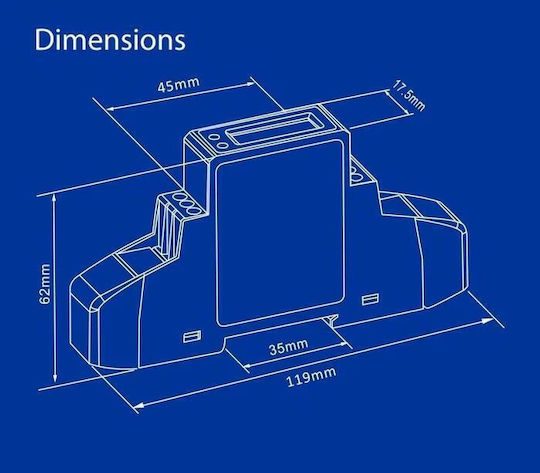

- Width: 18 mm
- Active energy measurement certification: IEC 62053-21 Class 1.0, EN50470-1/3 Class B
- Reactive energy measurement certification: IEC62053-23 Class 2, IEC 61557-12 Class 2
- Transmission speed: 1200–9600 bps
- Maximum transmission distance: 1000 m
Specifications
- Type
- Energy Analyzer
- Display Type
- Digital
- Installation Type
- Rail
- Number of Phases
- Single-phase
- Maximum Current
- 45 A
Smart Features
- Connectivity
- Modbus
