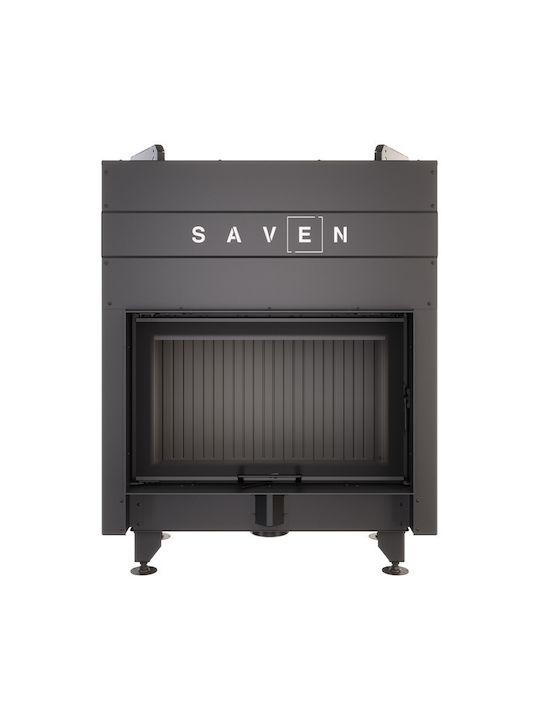

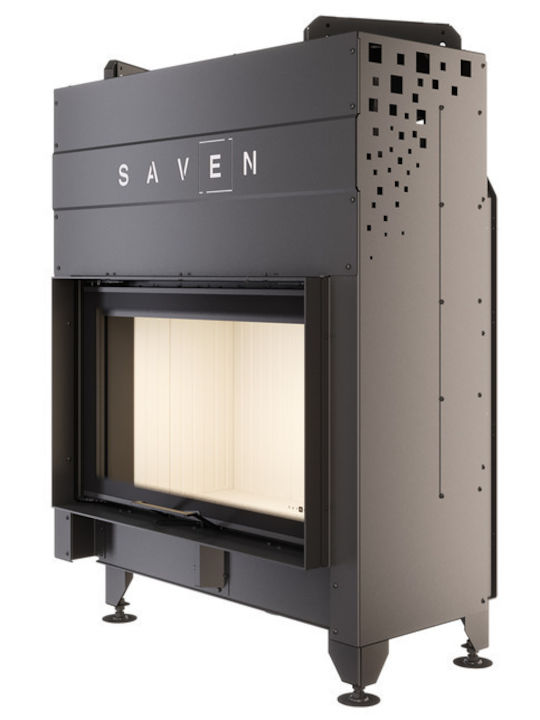

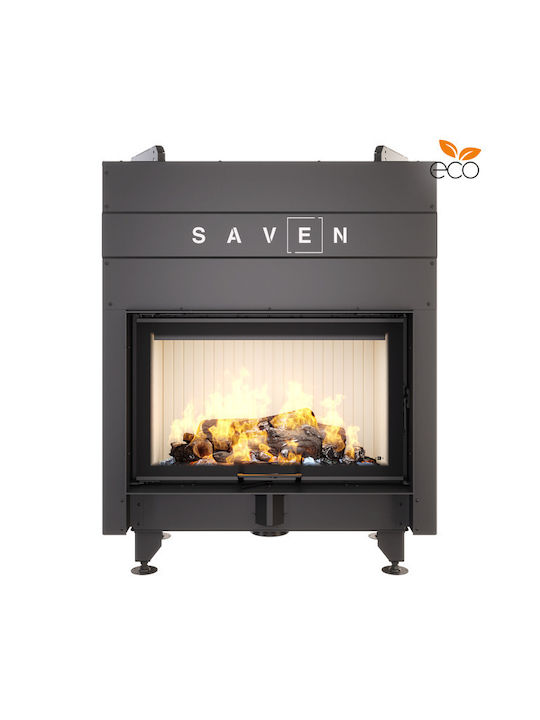

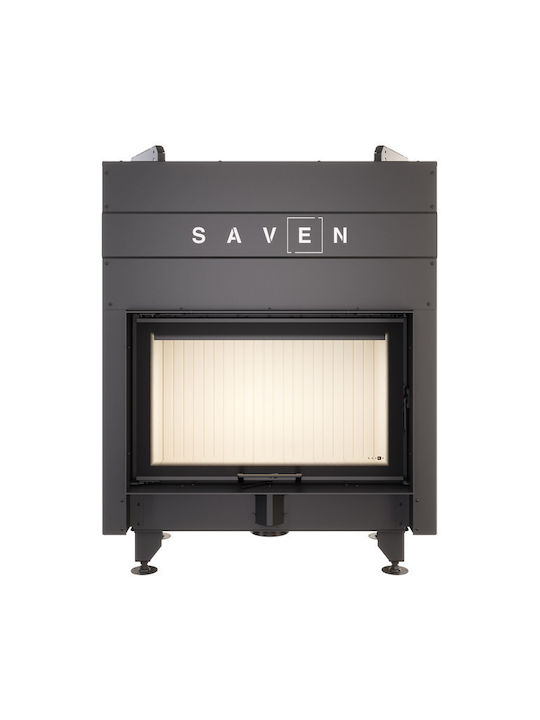

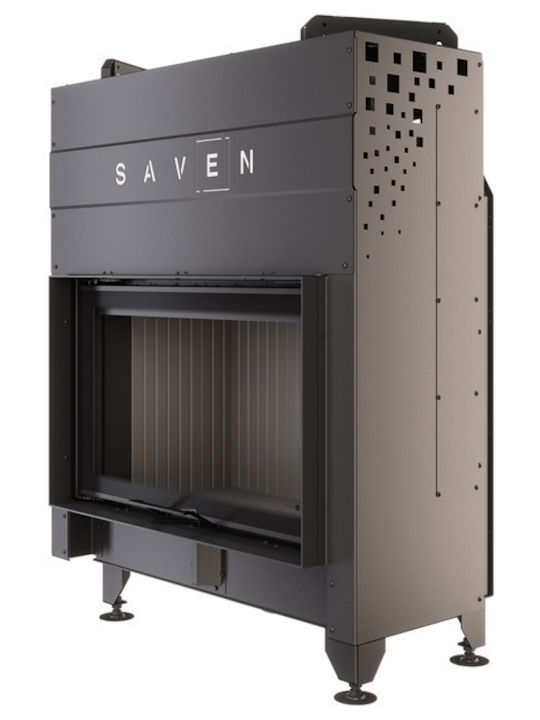

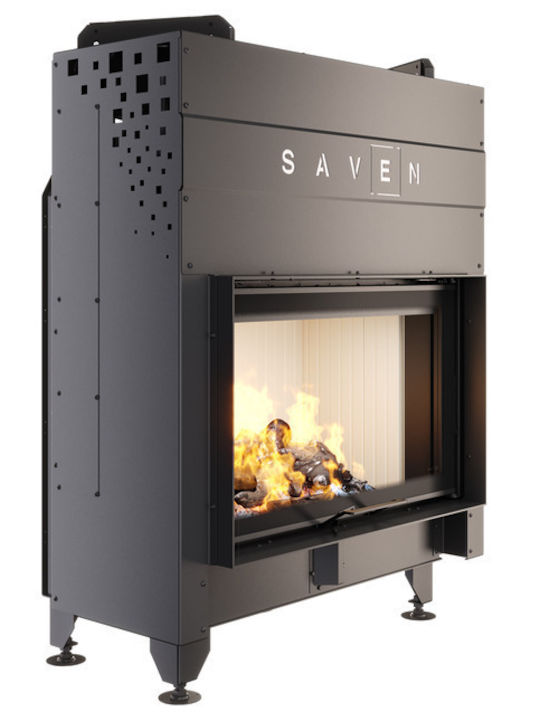

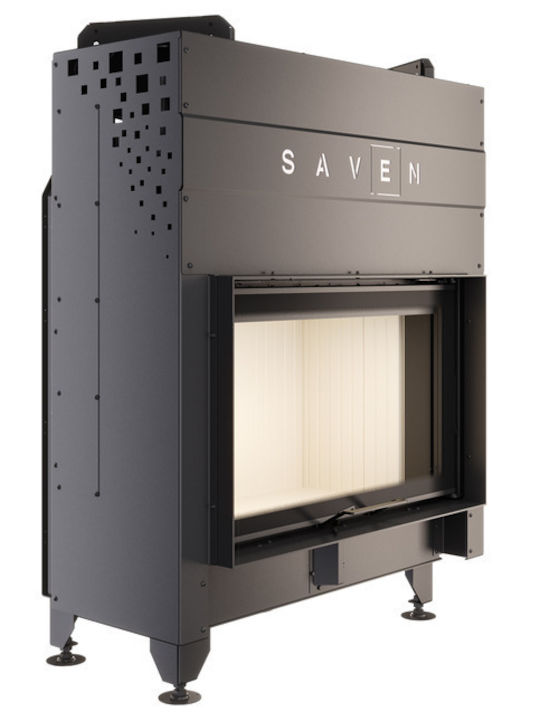

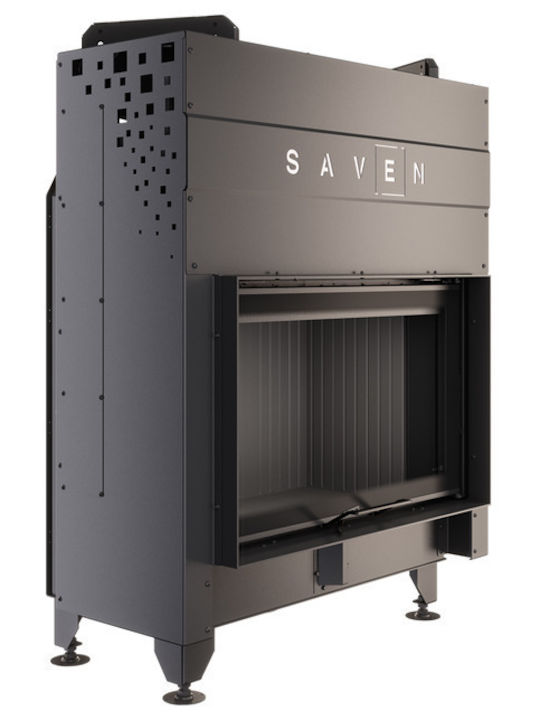

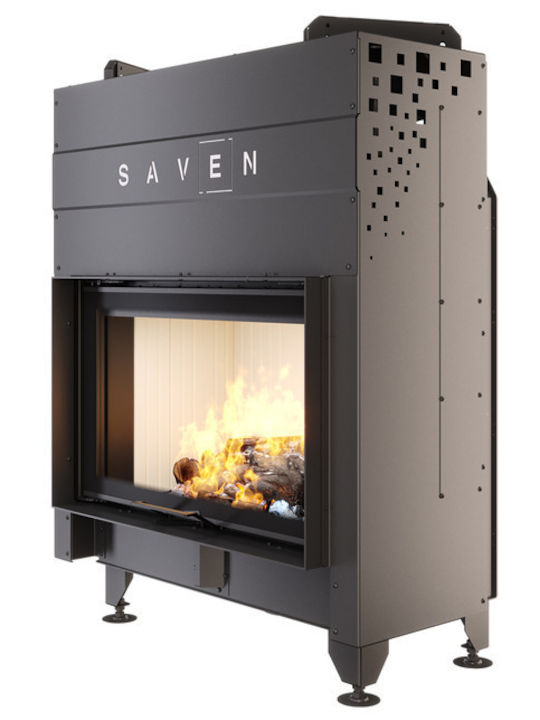

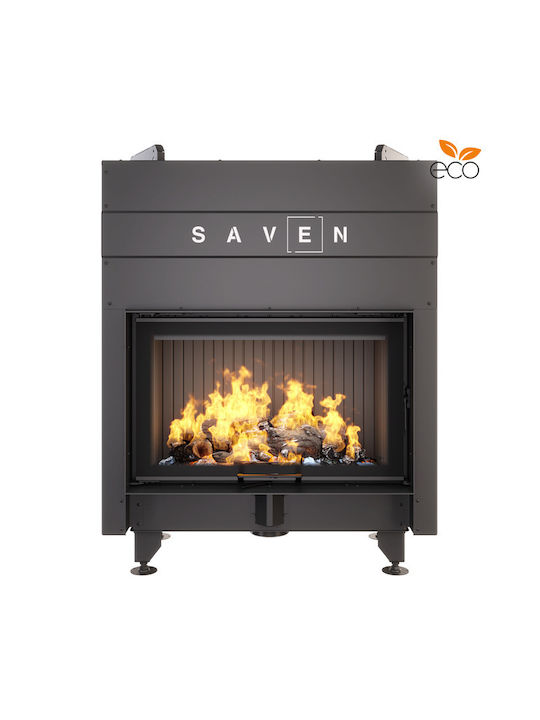

The SAVEN fireplaces with sliding doors are made from certified materials and unique technologies. The main advantages of the SAVEN Energy Up 80x50 (17.0 kW) ECO steel fireplace insert include:
- Convenient and reliable sliding door lifting mechanism
- Reliable sealing of the combustion chamber
- Silent closing and opening
- Door fixation in any position
- Automatic door locking for sealing
- Ability to add/remove weight to adjust closing and opening
- Side door opening function for maintenance
The SAVEN Energy Up 80x50 (17.0 kW) ECO fireplace heats up quickly and retains heat in the room for a long time. High efficiency due to the application of the flue gas deflection design. Fireplace door sealing with fire-resistant materials for additional safety. Robust steel door profile with glass, resistant to bending under the influence of high temperatures.
The SAVEN Energy Up 80x50 (17.0 kW) ECO steel fireplace insert is made from tested and high-quality materials. The production includes:
- Hot-rolled low-alloy steel sheet with a thickness of 3 to 5 mm
- Lining with thick protective fireproof plates
- Heat-resistant glass capable of withstanding temperatures up to 760°C
The fireplace insert is versatile and operates safely for many years. Easy installation with low maintenance. "Clean glass" system that protects the glass of the fireplace insert from fogging.

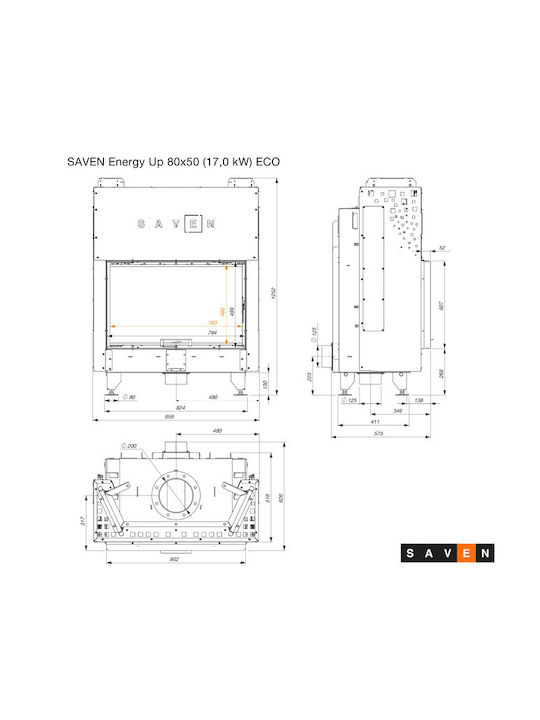

Characteristics:
- Nominal thermal power (kW): 17.0
- Length (mm): 959
- Height (mm): 1252
- Width (mm): 573
- Weight (kg): 269
- Efficiency (%): 81.2%
- Chimney diameter (mm): 200
- Glass dimension (mm): 763x460x4
- Heating capacity (m²/m³): 170/425
- Clean Glass system: Yes

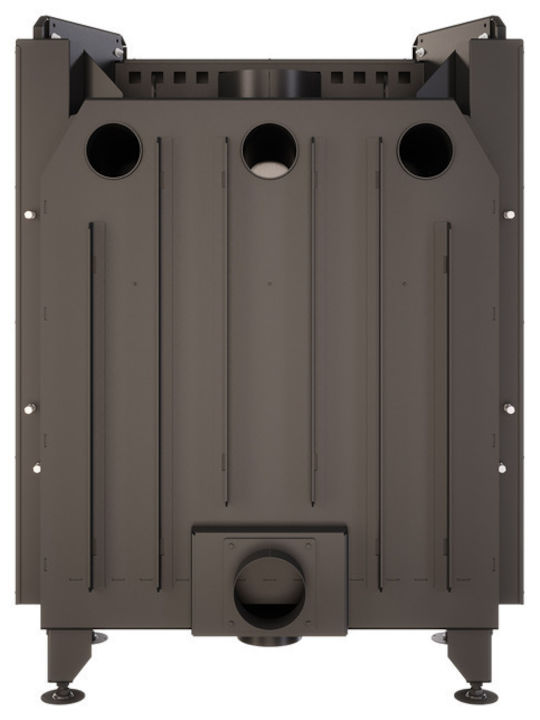

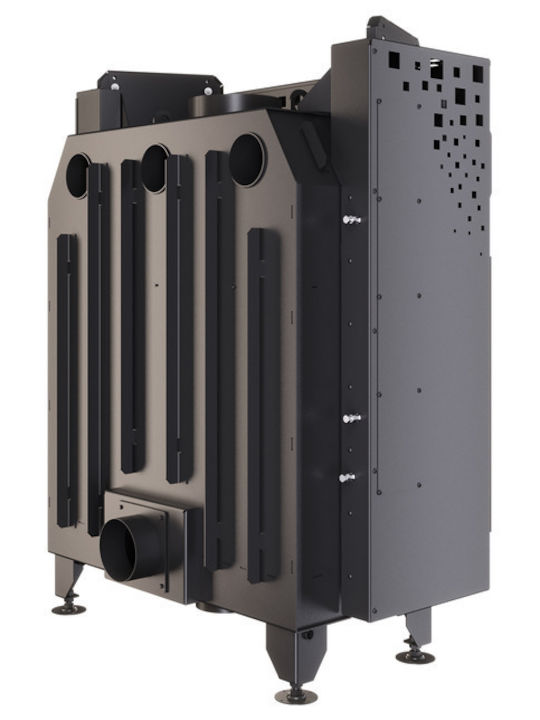

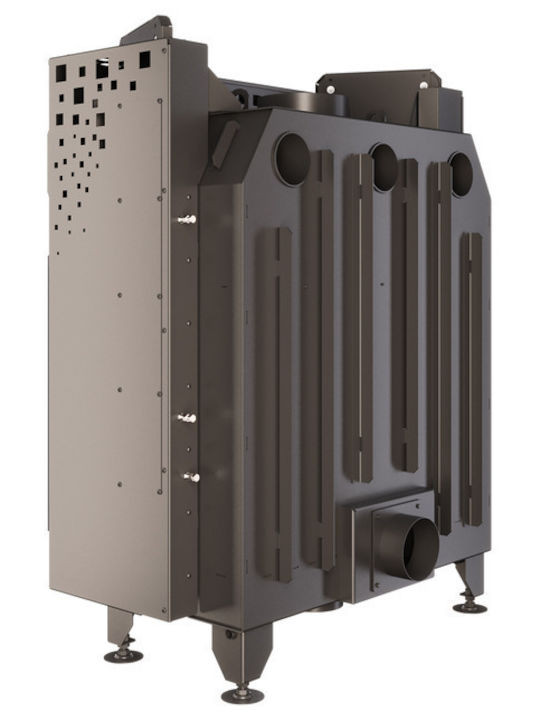

- Smoke outlet options: Top/Rear
- External air supply: Bottom/Rear
- Air inlet diameter (mm): 125
- Secondary combustion: Yes
- Maximum wood length (mm): 700
- Product Number
- SE/80/50/UP-select_731_2526
Product Details
- Cassette
- No
- Air Ηeater
- No
- Air Duct Connection
- No
- Radiator
- No
- Chimney diameter
- 200 mm
- Material
- Steel
- Fuel
- Wood
- Weight
- 269 kg
Performance

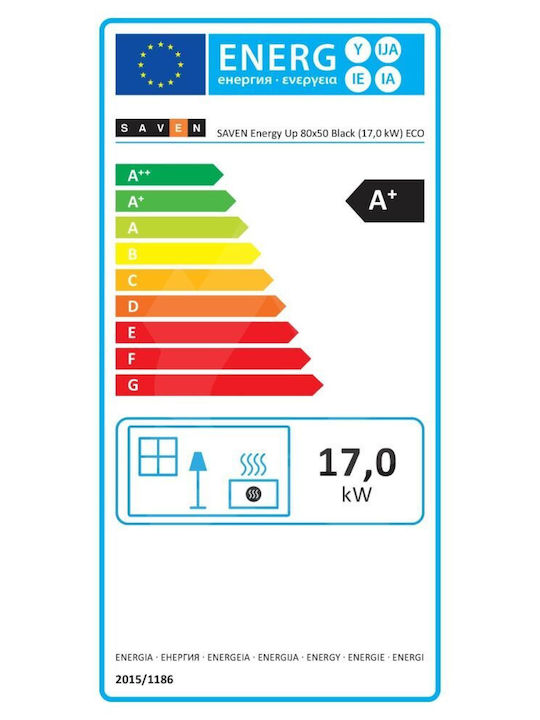

- Energy Class
- A+
- Total Power
- 17 kW
- Power in the Air
- 17 kW
- Performance Level
- 81.2 %
Attributes
- Windows
- Straight
- Container
- -
- Doors
- with Sliding Door
Dimensions
- Height
- 1252 mm
- Width
- 959 mm
- Length
- 573 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
