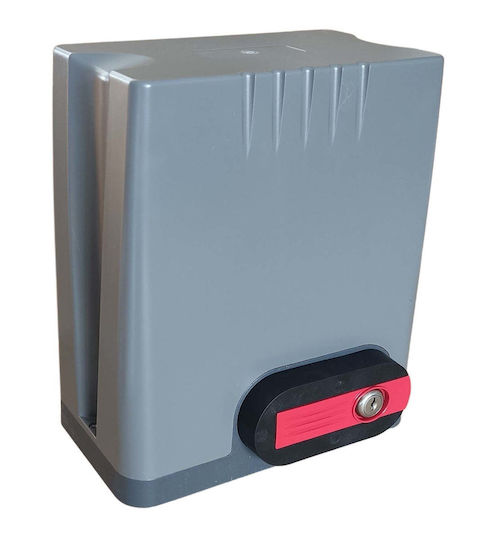

Set for sliding garage door with DKC800 mechanism for a weight of up to 800 kg. Includes:
- support base
- terminal switch activation plates
- release keys
- installation instructions in Greek
General information about the DKC800 mechanism:
- Maximum door leaf weight: 800kg
- Non-reversible, permanently lubricated mechanism
- Slow speed for smooth start and stop
- Single-phase motor (220 VAC)
- Door leaf movement speed: 12 m/min
- Motor absorbed power: 380 W
- Up to 12 open/close cycles per hour
- Operating temperature from -20 °C to 70 °C
- Motor thermal protection
- Door with key for release (manual operation)
- Command for external button connection
- Capability to connect safety photocells
- Electronic motor force adjustment
- Maximum pushing force: 270N
- Accepts flashing light while the door is operating
- Automatic closing
- Protection degree: IP44
- Type of gear: module 4
- Noise level: ≤ 58dB
- Type
- Sliding
- Maximum Weight
- 800 kg
