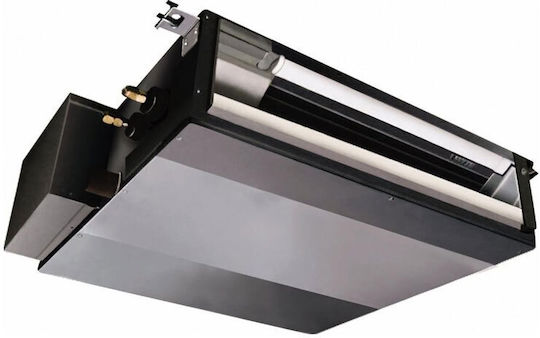

The Mitsubishi Electric SEZ-M60-DA-SUZ-M60-VA commercial air conditioner is a ducted Inverter model, designed to connect to air ducts and be installed inside the ceiling. The compact indoor unit requires little space, while only the return-air grille and supply-air ducts are visible in the room. The DC fan has three speeds and four static pressure settings: 5, 15, 35, and 50 Pa.
It uses R32 refrigerant and features an air-purifying filter, dehumidification function, and WiFi. The unit is single-phase and Eurovent certified.
- Type: Ducted Inverter
- Cooling capacity: 22000 BTU
- Heating capacity: 22000 BTU
- Rated cooling output: 6.1 kW
- Rated heating output: 7.4 kW
- Cooling energy rating: A++
- Heating energy rating, average climate: A+
- SEER: 5.5 W/W
- SCOP, average climate: 4.2
- Operating current: 14.8 A
- Fan speeds: 3 (low, medium, and high)
- Static pressure settings: 5, 15, 35, and 50 Pa
- Air-purifying filter: Yes
- Dehumidification: Yes
- WiFi: Yes
- Refrigerant: R32
- Indoor unit noise level: 29/33/37 dB(A)
- Indoor unit sound power level: 58 dB(A)
- Outdoor unit noise level: 51 dB(A)
- Outdoor unit sound power level: 65 dB(A)
- Indoor unit dimensions (H × W × D): 200 × 1190 × 700 mm
- Indoor unit weight: 27 kg
- Outdoor unit dimensions (H × W × D): 880 × 800 × 285 mm
- Outdoor unit weight: 54 kg
- Liquid line: 6.35 mm (1/4 in)
- Gas line: 15.88 mm (5/8 in)
- Maximum line length: 30 m
- Maximum line height: 30 m
- Power supply: Single-phase, 220–240 V, 50 Hz
- Certification: Eurovent
Product Details
- Type
- Concealed Ceiling Unit
- Performance (BTU)
- 22000 BTU
- Cooling Power
- 22000 BTU
- Heating Power
- 22000 BTU
- Power Supply
- Single-phase V
Features & Functions
- WiFi
- Yes
- Electric Resistance
- No
- Refrigerant R32
- Yes
- Timer
- No
- Follow Me Function
- No
- Human Detection
- No
- Self-Diagnosis Function
- No
Energy Class
- Cooling
- A
- Heating
- A
- SEER Cooling
- 5.5 W/W
Dimensions of External Unit
- Outdoor Unit Length
- 880 mm
- Outdoor Unit Height
- 800 mm
- Depth of External Unit
- 285 mm
Noise Power
- Internal Unit
- 37 dB
- External Unit
- 51 dB
Dimensions
- Indoor Unit Length
- 200 mm
- Indoor Unit Height
- 1190 mm
- Internal Unit Depth
- 700 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
