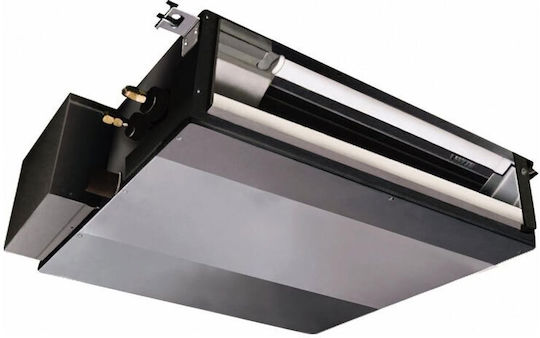

The Mitsubishi Electric SEZ-M25 DA / SUZ-M25 VA ducted air conditioner features Inverter technology and connects to air ducts. The indoor unit is concealed in the ceiling, leaving only the air intake grille and air outlet ducts visible. Its compact design allows installation in rooms with low ceilings.
The DC fan offers three speeds and four static pressure settings: 5, 15, 35 and 50 Pa. The air conditioner features an air purification filter, a dehumidification function and Eurovent certification.
- Type: Ducted Inverter
- Cooling capacity: 9,000 BTU/h (2.5 kW)
- Heating capacity: 9,000 BTU (2.9 kW)
- Cooling energy rating: A++
- Heating energy rating: A+
- SEER: 5.3 W/W
- SCOP: 3.8
- Power supply: Single-phase, 220–240 V, 50 Hz
- Operating current: 6.8 A
- Refrigerant: R32
- Wi-Fi connectivity: Optional
- Fan speeds: 3 (low, medium and high)
- Static pressure settings: 5, 15, 35 and 50 Pa
- Filter: Air purification
- Dehumidification function: Yes
- Indoor unit noise level: 22/25/29 dB(A)
- Indoor unit sound power level: 50 dB(A)
- Outdoor unit noise level: 46 dB(A)
- Outdoor unit sound power level: 59 dB(A)
- Indoor unit dimensions (H × W × D): 200 × 790 × 700 mm
- Indoor unit weight: 18 kg
- Outdoor unit dimensions (H × W × D): 550 × 800 × 285 mm
- Outdoor unit weight: 30 kg
- Liquid line diameter: 6.35 mm (1/4 in)
- Gas line diameter: 9.52 mm (3/8 in)
- Line length: 20 m
- Line height difference: 12 m
- Certification: Eurovent
Product Details
- Type
- Concealed Ceiling Unit
- Performance (BTU)
- 9000 BTU
- Cooling Power
- 9000 BTU
- Heating Power
- 9000 BTU
- Power Supply
- Single-phase V
Features & Functions
- WiFi
- Yes
- Electric Resistance
- No
- Refrigerant R32
- Yes
- Timer
- No
- Follow Me Function
- No
- Human Detection
- No
- Self-Diagnosis Function
- No
Energy Class
- Cooling
- A
- Heating
- A
- SEER Cooling
- 5.3 W/W
Dimensions of External Unit
- Outdoor Unit Length
- 800 mm
- Outdoor Unit Height
- 550 mm
- Depth of External Unit
- 285 mm
Noise Power
- Internal Unit
- 50 dB
- External Unit
- 46 dB
Dimensions
- Indoor Unit Length
- 790 mm
- Indoor Unit Height
- 200 mm
- Internal Unit Depth
- 700 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
