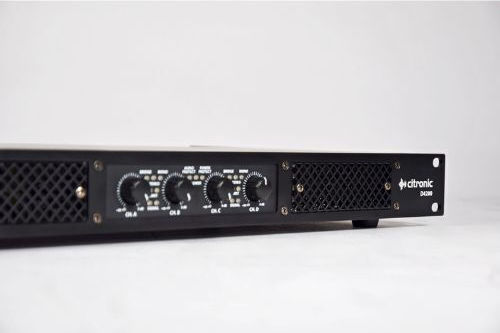

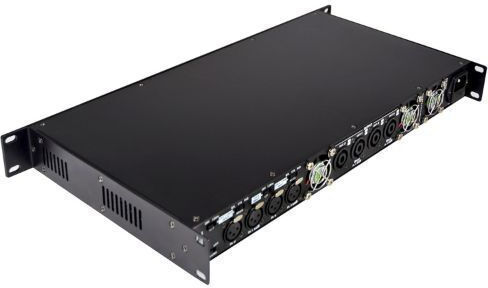

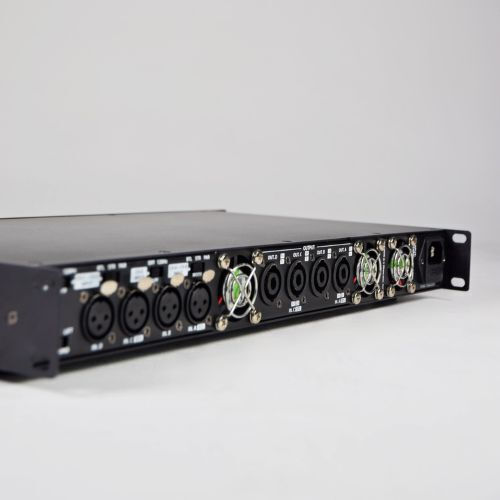

Citronic D4200 Quad Amplifier 4 x 200W RMS
Quad digital power amplifier 1U with rack-mounting capability. An energy-efficient switch-mode power supply section and a class D amplification circuit provide precise power on demand to four independent speaker outputs.
The proprietary cooling driver technology provides consistent temperature management for reliable operation.
- Selectable bridge or parallel mono modes
- Switchable high-pass and low-pass filters
- Configurable as stereo or 2.1 system
- Fully balanced audio signal path
- Full audio and power protection with peak limiter
Specifications:
- Power supply: 220-240Vac, 50/60Hz (IEC)
- Output: rms @ 4 Ohms 4 x 200W
- Output: rms @ 8 Ohms 4 x 100W
- Bridge power @ 8 Ohms 2 x 400W (both pairs of channels bridged)
- Modes: 2 x Stereo, Parallel (mono), Bridge (mono)
- Input sensitivity: 0dB = 0.775Vrms
- Crossover: Input A 120Hz LPF and C+D 120Hz HPF (all switchable)
- Input connections: 4 x XLR female
- Audio output: 4 x SPK sockets
- Dimensions: 482 x 308 x 44 mm (without feet)
- Weight: 4.393kg
Technical Specifications
- Amplifier Type
- Commercial Amplifier
- Type
- Power Amplifier
- Zones
- -
- Power (8Ω)
- -
- Power (4Ω)
- -
- Power (100V)
- 200 W
- Weight
- 4.393 kg
Additional Specifications
- Radio
- No
- Cooling system
- No
Connectivity
- RCA
- No
- XLR
- No
- Mini Jack (3.5mm)
- No
- Jack (6.3mm)
- No
- USB
- No
- Ethernet
- No
- Bluetooth
- No
- Mic In
- No
Dimensions
- Width
- 482 mm
- Height
- 308 mm
- Length
- 44 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
