Features:

• Wall speaker for Professional PA systems
• Bass enhancement technology with exclusive radial horn
• IP65, suitable for all weather conditions, for indoor and outdoor use
• With power input for 70V/100V and 8Ω
• Nominal output power 20W/40W
• 1×5” and 1×6.5” for woofer and 1×1” for tweeter
• Quick installation with waterproof brackets
• Modern appearance with excellent sound quality

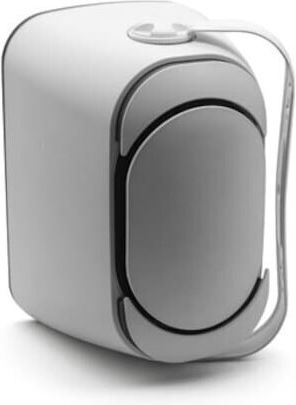

Description of DSP5020/DSP5040 IP65 Waterproof Wall Speaker

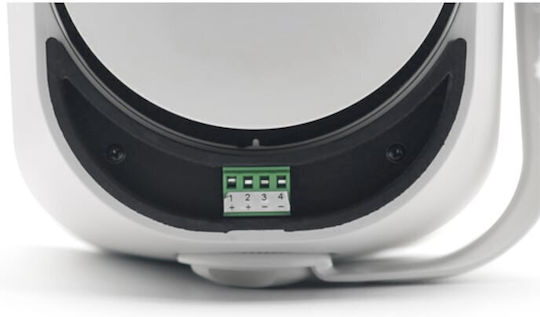

The DSP5020/DSP5040 is designed to change the wall speaker market by combining Beauty, Durability, Performance, and Usability. The speaker provides soft sound quality and clear announcements for public address systems. The unique back covers conceal the Euroblock Connector and Bypass Selector (PA Transformer) on the rear of the speaker, merging with the OBE Basic Radial Listener and the overall design of the speaker, adding a modern touch of elegance.

Technical Specifications:

• Model: DSP5020, DSP5040
• Tweeter: 1” silk dome
• Woofer: 5’’ graphite cone with rubber surround, 6.5’’ graphite cone with rubber surround
• Frequency Range: +/-3 100Hz-20KHz, 90Hz-20KHz
• RMS Power Handling: 20W, 40W
• Sensitivity: 85dB, 86dB
• Tap: 8 ohms, 0.20W, 10W, 5W, 2.5W, 8 ohms, 0.40W, 20W, 10W, 5W
• Impedance: 8 ohms
• Termination: Pushable terminal blocks
• Mounting: Brackets
• Dimensions: H*W*D 285mm*170mm*161mm, 285mm*200mm*195mm
• Construction Material: ABS
• Certification: IP65 waterproof speaker

Note: This product is not an active speaker.
