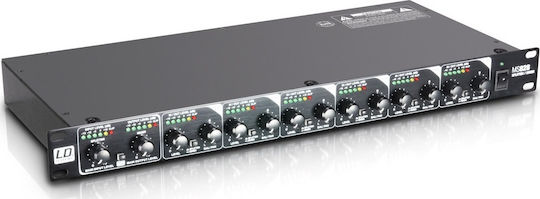

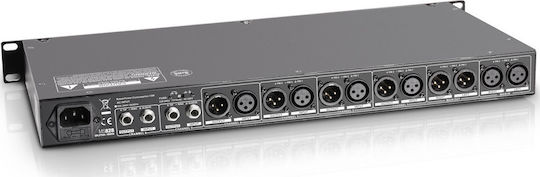

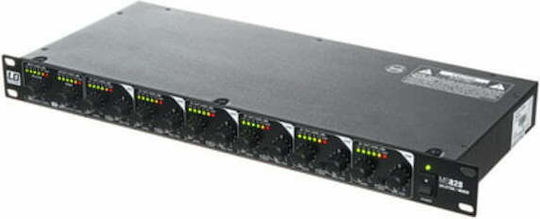

8-channel mixer-splitter with the following features:

• Inputs: 6 in / 2 out or 2 in / 6 out balanced
• Level adjustment on each input and output
• VU meter LED on each input and output
• Channels: 8
• Mono inputs: 6
• Mono input connectors: 2 x 6.3 mm TS
• Stereo input connectors: 2 x XLR
• Input impedance: (balanced) 50000 Ω, (unbalanced) 25000 Ω
• Maximum input level: + 21 dBu
• Nominal working level: -10 dBV - +4 dBu
• Mono outputs: 6
• Stereo output connector: 1 x XLR
• Output impedance: (balanced) 60 Ω, (unbalanced) 30 Ω
• Maximum output level: +22 dBu
• Frequency response: 5 - 40000 Hz
• THD: 0.0008 %
• S/N Ratio: 85 dB
• Controls: Level Channel 1-6, Main Input Level, Main Link, Main Output Level, Power, Splitter/Mixer Channel 1-6
• Indicators: In/Out Level Channel 1-6 (6-segment), Input Level LED Indicator (6-segment), Output Level Indicator (6-segment), Power
• Operating voltage: 220 V AC - 240 V AC, 50-60 Hz
• Power connector: IEC
• Power consumption: 15 W
• Dimensions: 483 x 44.5 x 216 mm
• Weight: 3 kg
