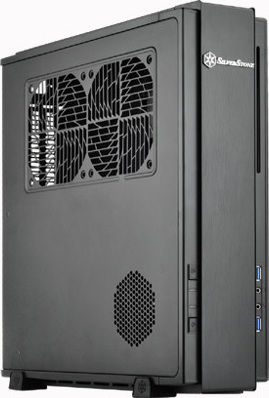

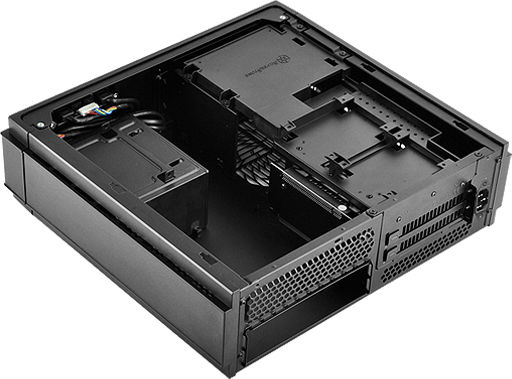

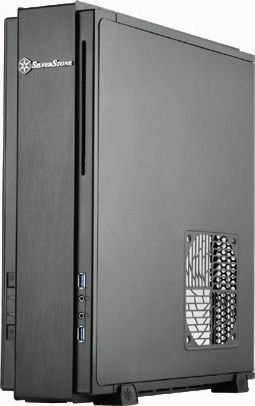

Silverstone ML07B Home Theater Computer Case Black
Computer Cases

Silverstone ML07B Home Theater Computer Case Black

Design

  • Form factor: HTPC
  • Type: PC
  • Product color: Black
  • Supported motherboard form factors: Mini-DTX, Mini-ITX
  • Number of 3.5" bays: 1
  • Material: Plastic, Stainless steel
  • Number of 2.5" bays: 3
  • Side...

Design

  • Form factor: HTPC
  • Type: PC
  • Product color: Black
  • Supported motherboard form factors: Mini-DTX, Mini-ITX
  • Number of 3.5" bays: 1
  • Material: Plastic, Stainless steel
  • Number of 2.5" bays: 3
  • Side window: NO
  • Power supply location: Bottom
  • Number of USB 3.2 Gen 1 ports: 2
  • Audio input: YES
  • Audio output: YES
  • Maximum top fans: 1
  • Supported top fan diameters: 120mm...
See full description See full description

Top specs

  • Internal 3.5'' Bays

    Installation locations for hard drives of corresponding size (usually HDD).

  • Internal Ports 2.5''

    Installation locations for hard disks of corresponding size (usually SSDs).

  • Connectivity

    Audio

    Port for connecting headphones or speakers with a cable.

    Microphone

    Port for microphone with cable.

    USB 3.0

    Faster data transfer (5 Gbit/s) than USB 2.0. Compatible with older versions. Also referred to as USB 3.1 Gen 1 / 3.2 Gen 1.
  • See all
The product is not available at Skroutz Last updated: 11 months ago
Product report

Description

Description

Design

  • Form factor: HTPC
  • Type: PC
  • Product color: Black
  • Supported motherboard form factors: Mini-DTX, Mini-ITX
  • Number of 3.5" bays: 1
  • Material: Plastic, Stainless steel
  • Number of 2.5" bays: 3
  • Side window: NO
  • Power supply location: Bottom
  • Number of USB 3.2 Gen 1 ports: 2
  • Audio input: YES
  • Audio output: YES
  • Maximum top fans: 1
  • Supported top fan diameters: 120mm
  • Maximum bottom fans: 2
  • Supported bottom fan diameters: 120mm
  • Supported hard drive sizes: 2.5, 3.5"
  • Width: 382mm
  • Depth: 350mm
  • Height: 105mm
  • Weight: 3710g

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Colour
Black
Size
Home Theater

Size

Home Theater

Boxes with low profile to fit in a TV cabinet.
Compatible Motherboard Type
Mini DTX, Mini ITX

Compatible Motherboard Type

The sizes of the motherboards that fit in the case.

Dimensions

Height
105 mm
Width
382 mm
Length
350 mm

Internal Spaces

Maximum Graphics Card Length
330 mm
Maximum Processor Heatsink Height
83 mm

Drive Bays

Internal Hub 3.5"
1

Internal Hub 3.5"

Installation locations for hard drives of corresponding size (usually HDD).
Internal Hub 2.5"
3

Internal Hub 2.5"

Installation locations for hard disks of corresponding size (usually SSDs).

Fan Positions

Top Positions
1
Bottom Positions
2

Water Cooling

Radiator Position
Top, Bottom

Radiator Position

At which point of the box is there a socket for installing a water-cooled refrigerator? This is for experienced users who want to install such a cooling system.

Specifications

Connectivity
Audio, Microphone, USB 3.0

Connectivity

Audio
Port for connecting headphones or speakers with a cable.
Microphone

Port for microphone with cable.

USB 3.0
Faster data transfer (5 Gbit/s) than USB 2.0. Compatible with older versions. Also referred to as USB 3.1 Gen 1 / 3.2 Gen 1.
Gaming
No
Airflow
-
Home & Office
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (1)

Reviews

5.0
1
5.0
Review this product
  1. 1
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • jaguarone
    5
    6 out of 6 members found this review helpful
    jaguarone

    Excellent case. Currently housing an AMD machine with 860k + Scythe Big Shuriken 2 Rev. B, Asrock FM2A88X-ITX+, 16gb ram 2133, 2x SSD, 2x mechanical drives, and a 450w Silverstone PSU with a 7790 GPU.

    Definitely needs a PSU with detachable cables to make your life easier, but it can be managed without one.

    Ample space for a graphics card! Can even fit a 5th disk!

    Satisfied with the airflow, although I wish it had built-in filters because it collects dust easily.

    Good build quality, the color has not faded in contact areas yet.

    Edit 28/11/2020:
    5 years later, I can say that the case doesn't "look" old. The color has not faded, nor has it worn out. The plastics, such as USB ports, still function properly. Even the rubber feet are still elastic. Very high quality. The dust issue was solved with 2 magnetic filters. And I must say, it now houses a Sapphire RX 570 Nitro+ which normally doesn't fit, but it fits without any modifications

    Translated from Greek ·
    • Cable management
    • Construction quality
    • Silent
    • Air flow
    • Value for money
    • Space
    • Dust filtering
    Did you find this review helpful?
  • jaguarone
    5
    jaguarone

    Excellent case. Currently housing an AMD machine with 860k + Scythe Big Shuriken 2 Rev. B, Asrock FM2A88X-ITX+, 16gb ram 2133, 2x SSD, 2x mechanical drives, and a 450w Silverstone PSU with a 7790 GPU.

    Definitely needs a PSU with detachable cables to make your life easier, but it can be managed without one.

    Ample space for a graphics card! Can even fit a 5th disk!

    Satisfied with the airflow, although I wish it had built-in filters because it collects dust easily.

    Good build quality, the color has not faded in contact areas yet.

    Edit 28/11/2020:
    5 years later, I can say that the case doesn't "look" old. The color has not faded, nor has it worn out. The plastics, such as USB ports, still function properly. Even the rubber feet are still elastic. Very high quality. The dust issue was solved with 2 magnetic filters. And I must say, it now houses a Sapphire RX 570 Nitro+ which normally doesn't fit, but it fits without any modifications

    Translated from Greek ·
    6
  • See all
Questions

Questions

Do you have a question about the product?

1 user has this product and can help you

Ask for the product

Description & Specifications

Main Specifications

Colour
Black
Size
Home Theater

Size

Home Theater

Boxes with low profile to fit in a TV cabinet.
Compatible Motherboard Type
Mini DTX, Mini ITX

Compatible Motherboard Type

The sizes of the motherboards that fit in the case.

Dimensions

Height
105 mm
Width
382 mm
Length
350 mm

Internal Spaces

Maximum Graphics Card Length
330 mm
Maximum Processor Heatsink Height
83 mm

Drive Bays

Internal Hub 3.5"
1

Internal Hub 3.5"

Installation locations for hard drives of corresponding size (usually HDD).
Internal Hub 2.5"
3

Internal Hub 2.5"

Installation locations for hard disks of corresponding size (usually SSDs).

Fan Positions

Top Positions
1
Bottom Positions
2

Water Cooling

Radiator Position
Top, Bottom

Radiator Position

At which point of the box is there a socket for installing a water-cooled refrigerator? This is for experienced users who want to install such a cooling system.

Specifications

Connectivity
Audio, Microphone, USB 3.0

Connectivity

Audio
Port for connecting headphones or speakers with a cable.
Microphone

Port for microphone with cable.

USB 3.0
Faster data transfer (5 Gbit/s) than USB 2.0. Compatible with older versions. Also referred to as USB 3.1 Gen 1 / 3.2 Gen 1.
Gaming
No
Airflow
-
Home & Office
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

Design

  • Form factor: HTPC
  • Type: PC
  • Product color: Black
  • Supported motherboard form factors: Mini-DTX, Mini-ITX
  • Number of 3.5" bays: 1
  • Material: Plastic, Stainless steel
  • Number of 2.5" bays: 3
  • Side window: NO
  • Power supply location: Bottom
  • Number of USB 3.2 Gen 1 ports: 2
  • Audio input: YES
  • Audio output: YES
  • Maximum top fans: 1
  • Supported top fan diameters: 120mm
  • Maximum bottom fans: 2
  • Supported bottom fan diameters: 120mm
  • Supported hard drive sizes: 2.5, 3.5"
  • Width: 382mm
  • Depth: 350mm
  • Height: 105mm
  • Weight: 3710g

Manufacturer

Manufacturer Details

Warnings & Safety Information

Reviews (1)

5.0
1
5.0
Review this product
  1. 1
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • jaguarone
    5
    6 out of 6 members found this review helpful
    jaguarone

    Excellent case. Currently housing an AMD machine with 860k + Scythe Big Shuriken 2 Rev. B, Asrock FM2A88X-ITX+, 16gb ram 2133, 2x SSD, 2x mechanical drives, and a 450w Silverstone PSU with a 7790 GPU.

    Definitely needs a PSU with detachable cables to make your life easier, but it can be managed without one.

    Ample space for a graphics card! Can even fit a 5th disk!

    Satisfied with the airflow, although I wish it had built-in filters because it collects dust easily.

    Good build quality, the color has not faded in contact areas yet.

    Edit 28/11/2020:
    5 years later, I can say that the case doesn't "look" old. The color has not faded, nor has it worn out. The plastics, such as USB ports, still function properly. Even the rubber feet are still elastic. Very high quality. The dust issue was solved with 2 magnetic filters. And I must say, it now houses a Sapphire RX 570 Nitro+ which normally doesn't fit, but it fits without any modifications

    Translated from Greek ·
    • Cable management
    • Construction quality
    • Silent
    • Air flow
    • Value for money
    • Space
    • Dust filtering
    Did you find this review helpful?
  • jaguarone
    5
    jaguarone

    Excellent case. Currently housing an AMD machine with 860k + Scythe Big Shuriken 2 Rev. B, Asrock FM2A88X-ITX+, 16gb ram 2133, 2x SSD, 2x mechanical drives, and a 450w Silverstone PSU with a 7790 GPU.

    Definitely needs a PSU with detachable cables to make your life easier, but it can be managed without one.

    Ample space for a graphics card! Can even fit a 5th disk!

    Satisfied with the airflow, although I wish it had built-in filters because it collects dust easily.

    Good build quality, the color has not faded in contact areas yet.

    Edit 28/11/2020:
    5 years later, I can say that the case doesn't "look" old. The color has not faded, nor has it worn out. The plastics, such as USB ports, still function properly. Even the rubber feet are still elastic. Very high quality. The dust issue was solved with 2 magnetic filters. And I must say, it now houses a Sapphire RX 570 Nitro+ which normally doesn't fit, but it fits without any modifications

    Translated from Greek ·
    6
  • See all
