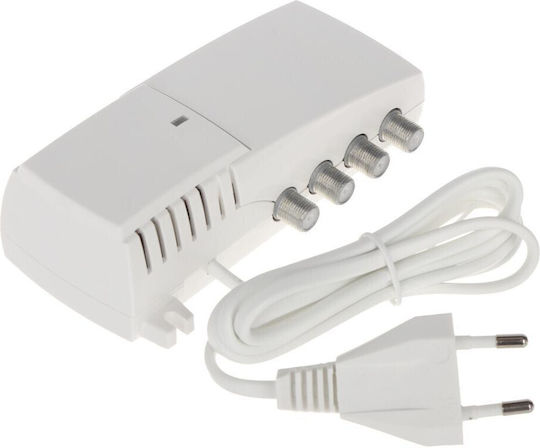

The Terra Electronics HS-016 satellite line amplifier boosts VHF and UHF signals. It has one input, two outputs, and a test output with 20 dB attenuation.
- Frequency range: 47–300 MHz (VHF), 470–862 MHz (UHF)
- Gain: 20–22 dB for VHF and UHF
- Gain adjustment: 0 to -15 dB for VHF, 0 to -12 dB for UHF
- Maximum output level: 104 dBµV (IMD3=60 dB, DIN45004B)
- Inputs/outputs: 1 input, 2 outputs, and 1 test output
- Power supply: 230 V AC
- Power consumption: ≤ 3.5 W
- Operating temperature: -20 to 50 °C
- Weight: 0.33 kg
- Dimensions: 133 × 63 × 39 mm
- Type
- Line Amplifier
