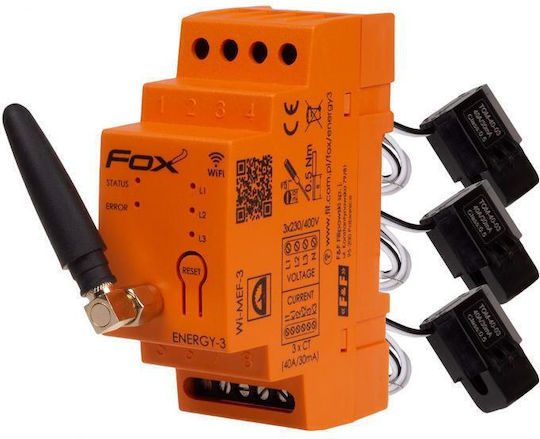

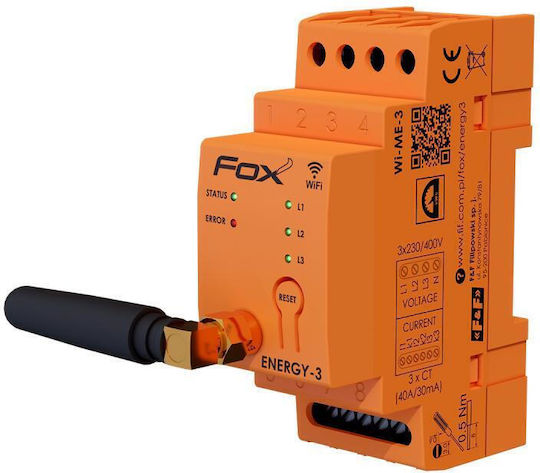

F&F Energy Analyzer Electric Panel Analog Rail Three-phase Wi-Fi Wi-MEF-3-200A

The F&F Wi-MEF-3-200A energy analyzer measures consumption in a three-phase, four-wire installation and mounts on a 35 mm DIN rail. It features an analog display, while Wi-Fi communication operates at...

The F&F Wi-MEF-3-200A energy analyzer measures consumption in a three-phase, four-wire installation and mounts on a 35 mm DIN rail. It features an analog display, while Wi-Fi communication operates at 2.4 GHz. Measurements are taken using current transformers with a primary current of 200 A and a secondary current of 30 mA.

  • Type: Energy analyzer
  • Display:...
See full description See full description

Top specs

See all
  • Connectivity Wi-Fi
208 19 €
Delivery Wed, 02 Dec - Tue, 08 Dec
2,50 € to a Skroutz Point
Do you want it with Free shipping?
Sent from Poland
From Ovolt 4.8 (10)
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

You can select additional services after adding the product to the cart.
Questions

Description & Specifications

The F&F Wi-MEF-3-200A energy analyzer measures consumption in a three-phase, four-wire installation and mounts on a 35 mm DIN rail. It features an analog display, while Wi-Fi communication operates at 2.4 GHz. Measurements are taken using current transformers with a primary current of 200 A and a secondary current of 30 mA.

  • Type: Energy analyzer
  • Display: Analog
  • Installation: On a 35 mm DIN rail
  • Number of phases: Three-phase
  • Wiring: 4-wire
  • Connectivity: Wi-Fi
  • Supply voltage: 3 × 230/400 V AC (-25% to 15%)
  • Frequency: 50–60 Hz
  • Maximum current of transformers: 200 A
  • Secondary current of transformers: 30 mA
  • Transformer conductor diameter: Ø24 mm
  • Meter accuracy: 1%
  • Measuring transformer accuracy: 0.5%
  • Meter constant: 1000 imp/kWh
  • Wireless communication frequency: 2.4 GHz
  • Wireless transmission power (IEEE 802.11n): Up to 20 dBm
  • Receiver sensitivity: -98 dBm
  • Connection: Screw terminals for stranded conductors up to 2.5 mm² or solid conductors up to 4.0 mm²
  • Tightening torque: 0.5 Nm
  • Power consumption: Up to 2 W
  • Operating temperature: -20 to 50 °C
  • Operating humidity, non-condensing: Up to 90%
  • Dimensions: 2 modules (35 mm)
  • Protection rating: IP20

Manufacturer

Specifications

Type
Energy Analyzer
Display Type
Analog
Installation Type
Rail
Number of Phases
Three-phase
Maximum Current
200 A

Smart Features

Connectivity
Wi-Fi
