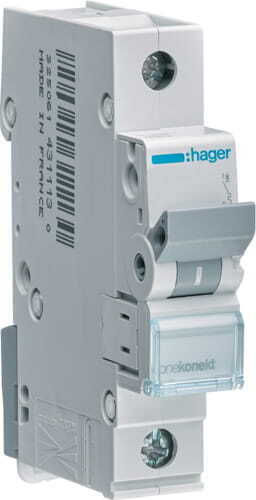

Hager Automatic Circuit Breaker 2A Single-pole AC MCN102E
Automatic Circuit Breaker

Hager Automatic Circuit Breaker 2A Single-pole AC MCN102E

Circuit breaker 1P C 2A 6kA AC MCΝ102E

  • Rated current: 2A
  • Tripping characteristics: C
  • Rated short-circuit breaking capacity: 6kA
  • Number of poles: 1 P
  • Number of modules: 1
  • Rated operational voltage Ue...

Circuit breaker 1P C 2A 6kA AC MCΝ102E

  • Rated current: 2A
  • Tripping characteristics: C
  • Rated short-circuit breaking capacity: 6kA
  • Number of poles: 1 P
  • Number of modules: 1
  • Rated operational voltage Ue (AC): 230/400
  • Rated insulation voltage Ui: 500
  • Frequency: 50/60 Hz
  • Electrical endurance (number of cycles): 10000
  • Mechanical endurance (number of cycles): 20000...
See full description See full description
17 96 €
18 Coins 18 Coins
Delivery Fri, 02 Oct - Thu, 08 Oct
2,50 € to a Skroutz Point
or   3,50 €   shipping cost
Do you want it with Free shipping to Skroutz Point?
From Agmia
Πειραιάς, Αττικής
20+ pieces
See Electrical Panel Supplies on the page of Agmia
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

Circuit breaker 1P C 2A 6kA AC MCΝ102E

  • Rated current: 2A
  • Tripping characteristics: C
  • Rated short-circuit breaking capacity: 6kA
  • Number of poles: 1 P
  • Number of modules: 1
  • Rated operational voltage Ue (AC): 230/400
  • Rated insulation voltage Ui: 500
  • Frequency: 50/60 Hz
  • Electrical endurance (number of cycles): 10000
  • Mechanical endurance (number of cycles): 20000
  • Operating temperature: -25 to 60 °C
  • Storage temperature: -25 to 80 °C
  • Installed product height: 83mm
  • Installed product width: 17.5 mm
  • Installed product depth: 70mm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Specifications

Number of Poles
1
Rated Current
2 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Circuit breaker 1P C 2A 6kA AC MCΝ102E

  • Rated current: 2A
  • Tripping characteristics: C
  • Rated short-circuit breaking capacity: 6kA
  • Number of poles: 1 P
  • Number of modules: 1
  • Rated operational voltage Ue (AC): 230/400
  • Rated insulation voltage Ui: 500
  • Frequency: 50/60 Hz
  • Electrical endurance (number of cycles): 10000
  • Mechanical endurance (number of cycles): 20000
  • Operating temperature: -25 to 60 °C
  • Storage temperature: -25 to 80 °C
  • Installed product height: 83mm
  • Installed product width: 17.5 mm
  • Installed product depth: 70mm

Manufacturer

Manufacturer Details

Warnings & Safety Information

Specifications

Number of Poles
1
Rated Current
2 A
Operating Curve
Curve C

Operating Curve

The tripping curve shows the time required for the circuit breaker to switch off in relation to the current passing through it. For small overcurrents, the tripping is delayed to avoid unnecessary interruptions, while for very high values, such as in the case of a short circuit, the breaker operates immediately to protect the circuit. Different types of curves are used depending on the needs of each installation and the type of loads.

Curve C

The most common in general installations, ideal for circuits with motors or electronic devices.

Power Supply

AC
Yes
DC
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
