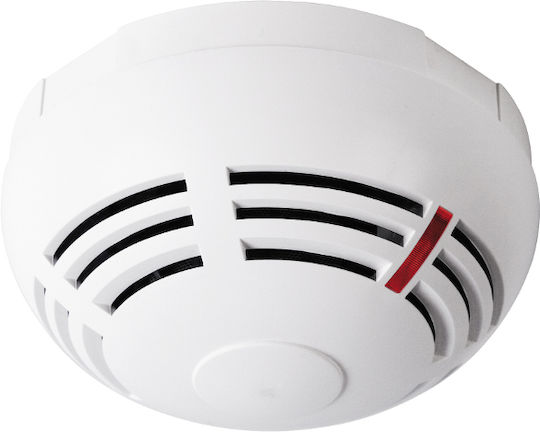

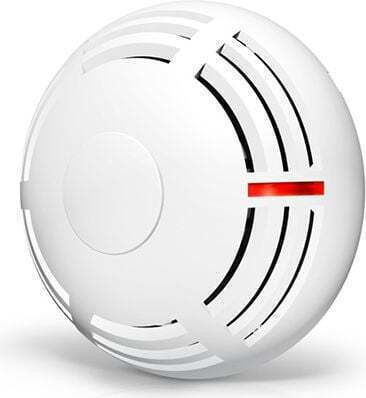

Point smoke detector for detecting visible smoke associated with an developing fire. It features:
- Unique Swirl chamber
- Precision stainless steel filter
- Malfunction indication due to contamination of the measurement chamber
- Easy installation on the DB-100 base
- Ability to connect an external activation indicator
Detected test fires: TF-2 to TF-5 according to EN54-7 and TF-1 and TF-8 according to ISO/TS 7240-9 2006.
Enclosure dimensions: ø108 x 42 mm
Operating temperature: -25...+50 °C
Supply voltage: 10.5...26 V DC
Weight: 94 g
Maximum humidity: 93±3%
Standby consumption: 0.03 mA
Alarm consumption: 23 mA
- Type
- Fire
