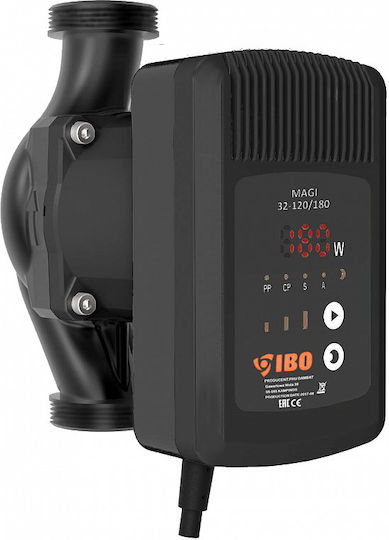

The MAGI-H series of circulator pumps features a magnetic motor and a differential pressure controller that automatically and continuously adjusts the pump's performance to meet the system's actual needs. The pump's control panel is located at the top of the motor, making it user-friendly. The indicator displays the current electricity consumption. The pump includes a screw set with an adapter for cable connection.
The pump has 12 operational settings:
- AUTO (factory setting) - Characteristic pressure curve ranging from high to low
- I / II / III - Constant speed curves
- PP1 / PP2 / PP3 / PP4 - Proportional pressure curves
- CP1 / CP2 / CP3 / CP4 - Constant pressure curves.
APPLICATION:
- Constant temperature heating system with variable flow
- Heating system with variable pipe temperature
- Night heating system
- Air conditioning system
- Industrial circulation system
- Domestic CO system and hot water production.
Product Details
- Electronic
- Yes
- Application
- Heating, Air Conditioning
- Maximum Pressure Head (m)
- 25 m
Dimensions
- Connection Diameter
- -
- Length
- 180 mm
