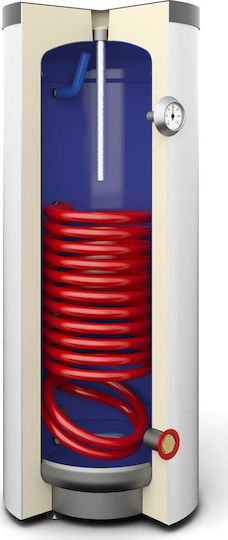

The Galmet SGW(S) Mini Tower vertical storage water heater is designed to provide domestic hot water. It features a coil heat exchanger, which allows the water to be heated by a central heating boiler or fireplace, and EXTRA GLASS® ceramic enamel.
The insulation is made of polyurethane, with a skay outer covering. It includes a magnesium anode, adjustable feet and rear connections. It has a circulation connection for an external pump and supports the optional installation of a GE electric heating kit.
- Type: Water heater
- Installation: Vertical
- Nominal capacity: 120 lt
- Storage capacity: 114 l
- ErP energy efficiency class: B
- Maximum tank operating pressure: 0,6 MPa
- Maximum heat exchanger operating pressure: 1,6 MPa
- Maximum tank temperature: 95 °C
- Maximum heat exchanger temperature: 110 °C
- Heat exchanger surface area: 0,95 m2
- Heat exchanger capacity: 4,1 l
- Heat exchanger power (70/10/45 °C): 23 kW
- Heat exchanger output (70/10/45 °C): 560 l/h
- Heat exchanger power (80/10/45 °C): 30,4 kW
- Heat exchanger output (80/10/45 °C): 740 l/h
- Required heating water flow rate: 2,5 m3/h
- Magnesium anode: 25 x 390 mm
- Weight: 57 kg
- Height: 1150 mm
- External tank diameter: 518 mm
- Width: 115 cm
- Material: Glass
- Product Number
- 26-128000
Dimensions
- Type
- Water Heater
- with Wi-Fi
- No
- Nominal Capacity
- 120 lt
- Placement
- Vertical
- Slim
- No
- Timer
- -
- Power
- -
- Material
- Glass
- Height
- -
- Width
- 115 cm
- Length
- -
Energy Label
- Energy Class
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
