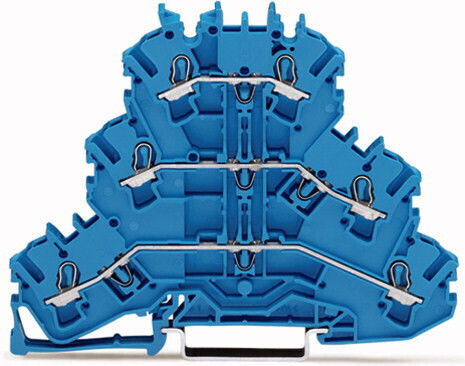

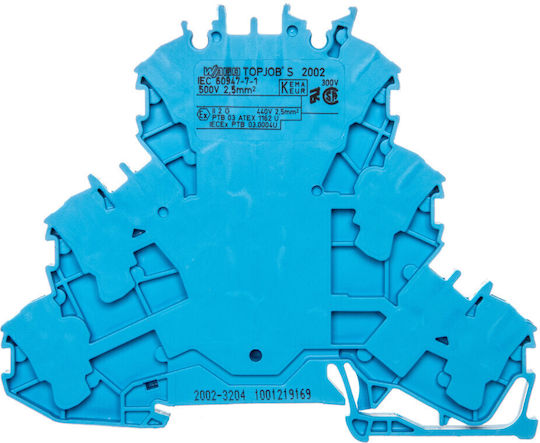

Three-level power plug N/N/N 69.5x93.3 mm blue
- No marker support
- Potential designation: N/N/N
- Color: blue
- Total number of terminals: 6
- Total number of dynamic: 3
- Number of levels: 3
- Pollution degree: 3
- Rated voltage EN: 500V
- Rated impulse voltage: 6kV
- Rated current: 24A / 28A
- Rated voltage Ex e II: 440V
- Rated current Ex e II: 19A / 17A
- Cable connection technique: Push-in CAGE CLAMP®
- Rated diameter: 2.5mm²
- Cable assembly with tools: 0.25 … 4 mm² / 22 … 12 AWG
- Cable with sleeve min. Plug assembly without tools: 0.75 mm² / 18 AWG
- Strip length: 10-12 mm
- Wiring type: front wiring
- Construction: horizontal construction
- Insulating material: polyamide 66 (Pa 66)
- Fire load: 0.316 MJ
- Weight: 16.845g

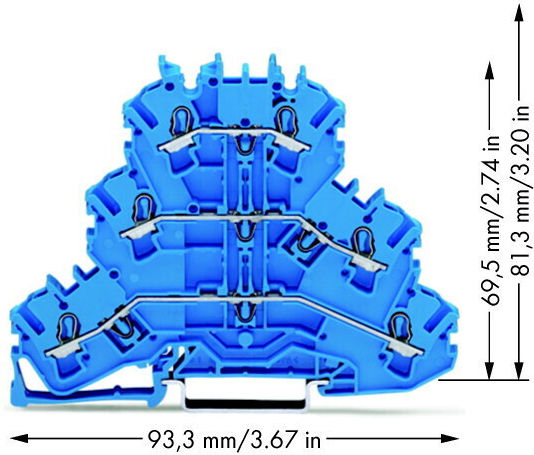

- Width: 5.2 mm
- Height: 69.5 mm
- Depth: 93.3 mm
- Mounting type: TS 35 rail
- Type
- Terminal Block
