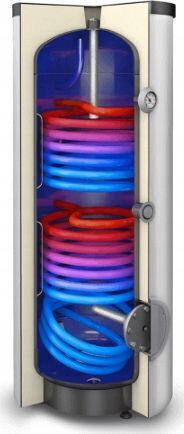

The hot water exchanger has three sources of supply for producing domestic hot water through a central heating boiler and solar energy. The tank features rigid polyurethane foam insulation and an external cover made of Skai-type fabric.
It has two serpentine coils, upper and lower, and is equipped with EXTRA GLASS® ceramic enamel and magnesium anode. Optionally, it can be fitted with insulated electric set GE and maintenance-free titanium active anode.
- Model: SGW(S)B 300
- Nominal capacity: 300 liters
- ErP energy efficiency class: B
- Insulation: Polyurethane foam
- Maximum tank operating pressure: 1.0 MPa
- Maximum serpentine pressure: 1.6 MPa
- Solar exchanger surface: 1.0 m²
- Exchanger power (70/10/45°C): 33.6 kW
- Collector exchanger efficiency (70/10/45°C): 800 l/h
- Central heating exchanger efficiency (70/10/45°C): 630 l/h
- Central heating exchanger surface: 1.1 m²
- Exchanger power (70/10/45°C): 26.4 kW
- Net weight: 140 kg
- Dimensions: L: 1650 mm, D: 670 mm
The inlet and outlet connections of the exchanger are as follows:
- Cold water inlet: Gw 1' mm 130
- Water outlet to solar collector: Gw 1' mm 280
- Protective sensor: Gw 3/8' mm 435
- Circulation: Gw 3/4 - 650 mm
- Hot water inlet from electric heater: Gw 750 mm
- Hot water inlet from solar collector: Gw 1' mm 860
- Water outlet to central heating: Gw 1' mm 1030
- Hot water inlet from central heating: Gw 1' mm 1355
- Product Number
- 26-309000N
- Type
- Water Heater
- with Wi-Fi
- No
- Nominal Capacity
- 300 lt
- Placement
- Vertical
- Power
- -
- Material
- Glass
- Height
- -
- Width
- -
- Length
- -
