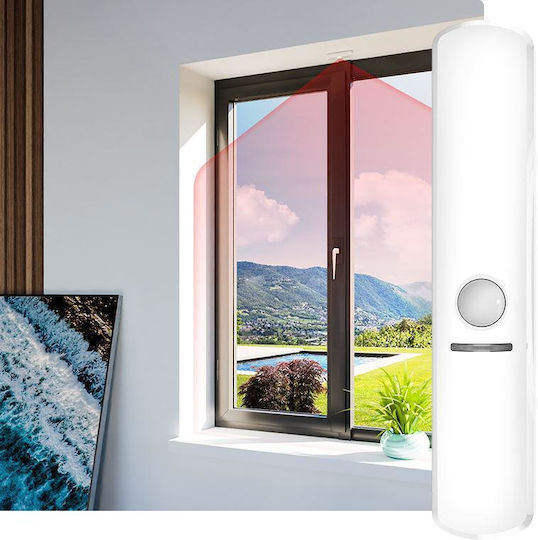

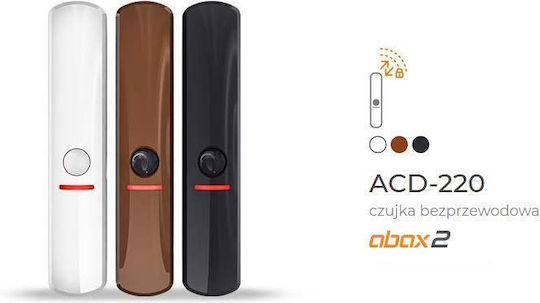

The Satel ACD-220-DG wireless curtain motion detector detects movement using a passive infrared (PIR) sensor and is designed for indoor use with the ABAX 2 two-way wireless system. Detection sensitivity is adjustable, and processing is based on a digital algorithm with temperature compensation.
Encrypted two-way radio communication operates at 868 MHz using AES encryption and automatically selects from 4 transmission channels. The detector supports remote firmware updates and configuration, monitors the motion detection circuit, and checks battery status. Tamper protection is triggered if the housing is opened or the device is detached from the mounting surface.
- Detection type: Infrared (PIR)
- Sensor type: Curtain
- Use: Indoor
- Mounting: Wall-mounted
- Connection: Wireless
- System: ABAX 2
- Radio communication: Two-way, AES-encrypted
- Frequency: 868 MHz
- Transmission channels: 4 with automatic selection
- Sensitivity adjustment: Available
- Detection algorithm: Digital
- Temperature compensation: Digital
- Temperature sensor: From -10 °C to +55 °C
- Indicator: LED
- Remote functions: Firmware updates and configuration

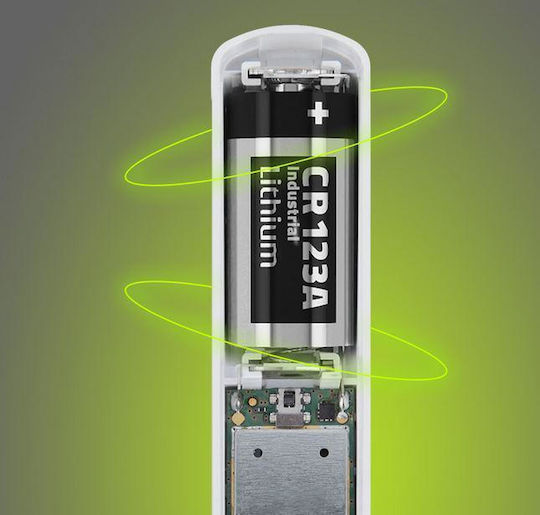

- Battery management: Status monitoring and battery life extension option

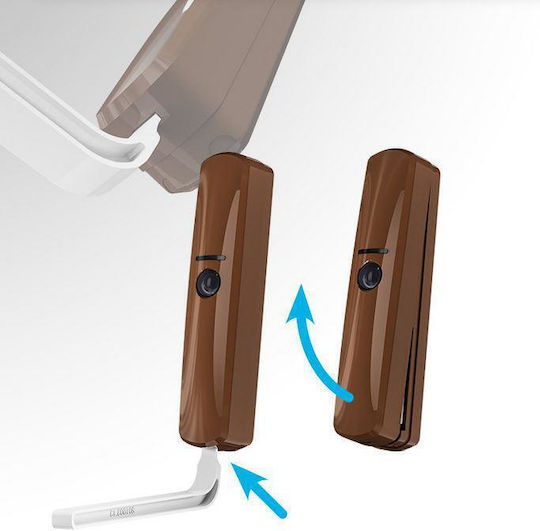

- Tamper protection: If the housing is opened or the device is detached from the mounting surface
Specifications
- Detection Type
- Infrared
- Connector
- Wireless
- Battery
- No
Additional Features
- Antimasking
- No
- Tamper
- No
- Curtain
- Yes
- Placement
- Wall
- Recessed
- No
- PET
- No
- Built-in Camera
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
