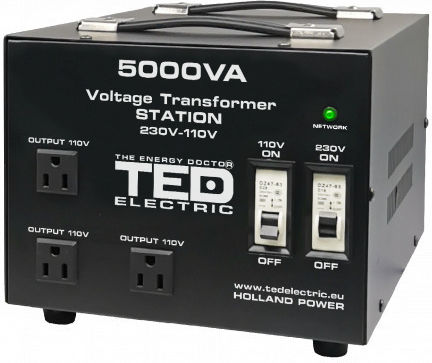

The TED Electric 5000VA 4000W transformer is used to convert from 230-220V to 110-115V and is reversible. Designed for indoor use in environments free of corrosive, flammable, or explosive agents, as well as conductive dust (it has an IP20 protection rating).

• Dimensions (L x W x H): 285 x 190 x 201 mm
• Input Connection: Rail
• Output Connectors: 3x USA plugs, Rail
• Input Voltage: 220V - 230V
• Output Voltage: 110V - 115V
• Frequency: 50Hz
• Reversible: Yes

• Place the TED Electric transformer in a stable and ventilated area, free of moisture.
• Ensure that the electronic devices (loads) you wish to connect are turned off (OFF).
• Connect the loads to the transformer outlet.
• Connect the transformer to the network (220-230V).
• Turn on the loads (ON).

• The connection of the transformer to the network is made via rail, connecting a 3-core cable with a minimum cross-section of 1.5mm or with 3 single-core conductors of the same cross-section, which are not included.
• Follow the steps of the operating instructions carefully!
• In case of malfunction, do not attempt to repair the device yourself!

• Recommended for devices with consumption of up to 8000 Watts.
• For inductive loads (which require high current on startup), use a transformer 3 to 5 times larger than the power of the load.
