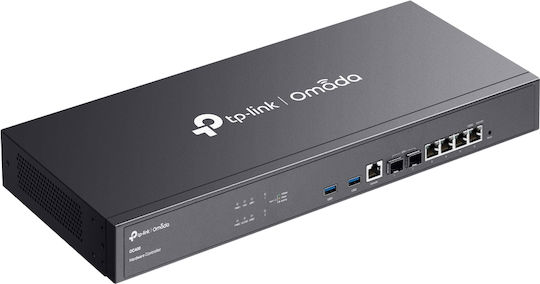

The TP-LINK Omada OC400 Controller enables centralized monitoring and configuration of Omada access points and switches. It supports up to 1,000 access points, 200 switches, and 100 Omada routers, as well as up to 30,000 concurrent clients. It provides management via the Omada app, a customizable statistics dashboard, and multi-tenant management.
- Type: Controller
- Quantity: 1
- Maximum number of access points: 1,000
- Maximum number of switches: 200
- Maximum number of routers: 100
- Maximum number of clients: 30,000
- Monitoring: Performance statistics, network topology, history, network list, and maps
- Management: Multi-tenant management, site migration, accounts, and backups
- Device configuration: Batch configuration, automatic configuration updates, and automatic device detection
- Updates: Bulk firmware updates
- Scheduling: WLAN resets and reboots
- Supported protocols: DDNS, SNMP, SSH
- USB ports: 2 x USB 3.0
- Ethernet ports: 4 x 10/100/1000 Mbit/s
- SFP+ ports: 2
- Console port: 1 x RJ-45
- Operating temperature: 0–40 °C
- Storage temperature: -40–70 °C
- Operating humidity: 10%–90%, non-condensing
- Power supply: 2 built-in power supplies, 100–240 V ~ 50/60 Hz AC
- Color: Black
- Dimensions: 440 x 180 x 44 mm
- System requirements: Microsoft Windows 11, 10, 8, 7, Vista, XP, MAC OS, NetWare, UNIX, Linux
- Package contents: Quick installation guide, Ethernet cable, power cable, mounting kit, and power cable shelf
- Type
- Controller
- Pieces
- 1 pcs
