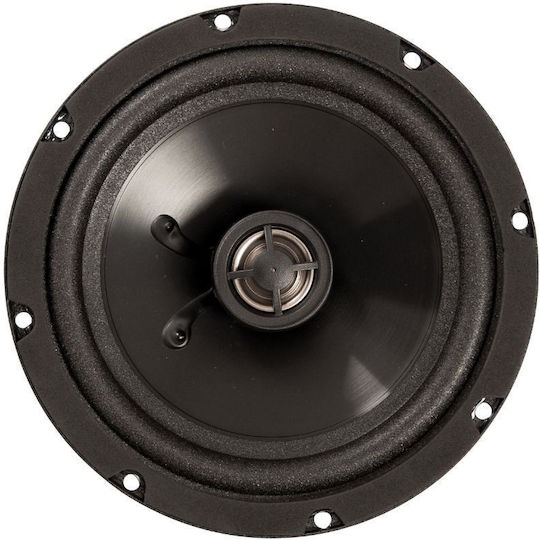

The DLS M226 car speaker is a two-way coaxial speaker with a polypropylene woofer and foam surround. Its slim frame makes it easy to install in many locations, while the external inline crossover uses a 6/12 dB slope for HP/LP. Grilles are included.
- Type: 2-way
- Shape: Round
- Diameter: 6.5″ / 165 mm
- RMS power: 50 W
- Peak power: 100 W
- Impedance: 4 ohms
- Tweeter: 16 mm
- Frequency range: 70–18,000 Hz
- Sensitivity: 85 dB
- Woofer cone material: Polypropylene
- Surround material: Foam
- Magnet diameter: 80 mm
- Mounting depth: 45 mm
- Mounting hole diameter: 145 mm

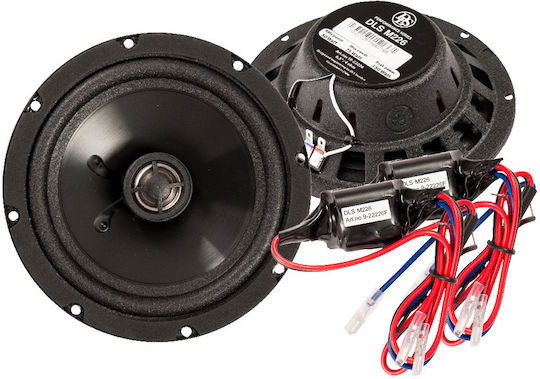

- Crossover: External, inline, 3-wire, 6/12 dB slope (HP/LP)

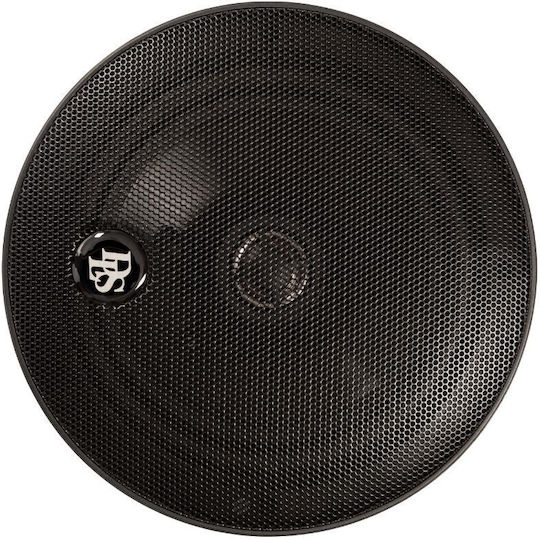

- Package contents: Grilles
- Product Number
- M226
Dimensions
- Type
- 2 Way
- Shape
- Round
- Round Speakers Diameter
- 6.5 "
Technical Specifications
- Peak Power
- 100 W
- Power (RMS)
- 50 W
- Nominal Impendance
- 4 ohm
