Midea Single Phase Heat Pump 12kW 60°C Split
Heat Pumps

Midea Single Phase Heat Pump 12kW 60°C Split Code: MHA-V12W/D2N8-B2

The Midea heat pump offers an excellent solution for heating and cooling your space. With a nominal thermal power of 12 kW, it can adequately cover the needs of a residence up to 120 square meters....

The Midea heat pump offers an excellent solution for heating and cooling your space. With a nominal thermal power of 12 kW, it can adequately cover the needs of a residence up to 120 square meters. Thanks to air-to-water technology, it extracts heat from the external environment and transfers it indoors, providing comfortable thermal conditions during...

See full description See full description
This product is temporarily unavailable at Skroutz Last updated: 25 days ago
Review the product
Product report

Description

Description

The Midea heat pump offers an excellent solution for heating and cooling your space. With a nominal thermal power of 12 kW, it can adequately cover the needs of a residence up to 120 square meters. Thanks to air-to-water technology, it extracts heat from the external environment and transfers it indoors, providing comfortable thermal conditions during winter. Conversely, for cooling, it extracts heat from the interior and expels it outside.

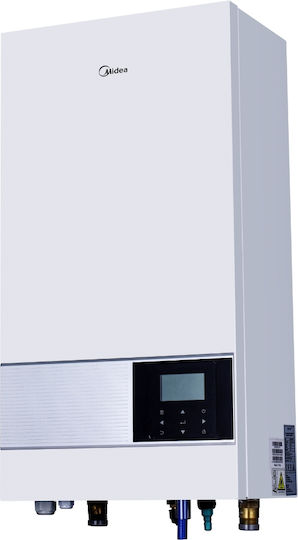

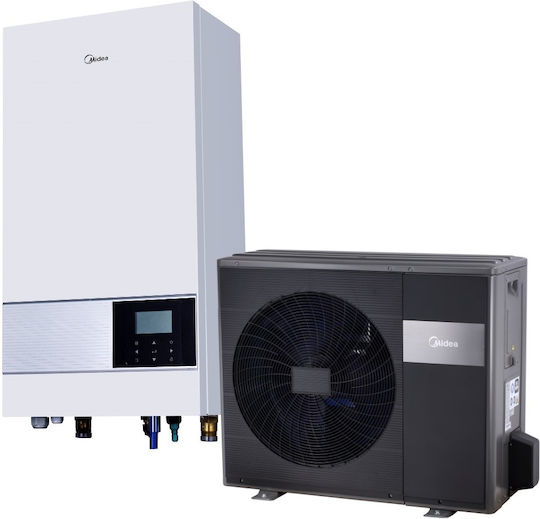

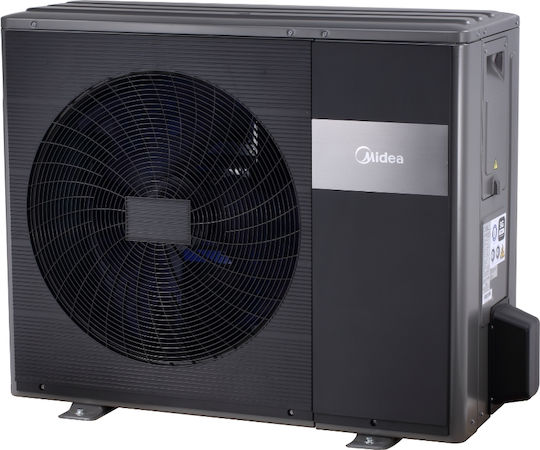

Its single-phase power supply, with a voltage of 220-230V, is ideal for residential applications and ensures good energy efficiency. The system is split, meaning it consists of two separate units. The indoor unit includes main components such as the circulator and heat exchanger, while the outdoor unit houses the compressor and fan, offering many configuration possibilities according to your indoor space requirements.

The heat pump supports a maximum water temperature of up to 60°C, making it suitable for underfloor heating or fan coils. There is also the option for optional installation of a tank for hot water production throughout the year; however, the tank is not included in the purchase.

  • Nominal Thermal Power (7ºC - 35ºC): 12kW
  • Maximum Water Temperature: 60°C
  • Technology: Air - Water
  • System Type: Split
  • Cooling: Supported

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
MHA-V12W/D2N8-B2

Technical Specifications

Rated Thermal Power (7ºC - 35ºC)
12 kW
Maximum Water Temperature
60 °C
Heating Type
Air to Water

Heating Type

Air to Water
They use air as a source of heat, and water as a means of transportation, to channel cooling or heating into the space.
System Type
Split

System Type

Split
The split system consists of two independent units: the indoor unit (which contains the circulator, heat exchanger, etc.) and the outdoor unit (which houses the compressor, exchanger, fan, etc.), which are connected to each other by copper pipes. Pros: Provides many customization options for individual spaces (e.g. creating different zones according to each space's requirements). There is no fear of the unit freezing, as there is an independent exchanger in the interior of the building. Cons: The above also functions as a disadvantage, as there are limitations on the distance at which the outdoor unit can be placed in relation to the exchanger.
Cooling
Yes
Domestic Hot Water
Optional Domestic Water Supply
Power Source
Single Phase

Power Source

Single Phase

The voltage of the single-phase current is 220-230V (the same as the voltage required by household appliances) and is sufficient for the majority of domestic consumers.
Type of Refrigerant Fluid
R32

Energy Class

Energy Class (35ºC)
A
Energy Class (55ºC)
A
COP (7ºC - 35ºC)
4.95

COP (7ºC - 35ºC)

(Coefficient Of Performance) is the measurement that shows how efficient our pump is (in terms of heating) in relation to the amount of energy it consumes. The higher the efficiency rating, the more efficient our pump is.
EER (7ºC - 35ºC)
2.75

EER (7ºC - 35ºC)

(Energy Efficiency Ratio) is the measurement that shows us how efficient our pump is in cooling. The higher the efficiency rating, the more efficient our pump is.
Indoor Unit Noise Level
64 dB
Outdoor Unit Noise Level
64 dB

Outdoor Dimensions

Length
1118 mm
Height
865 mm
Length
523 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
