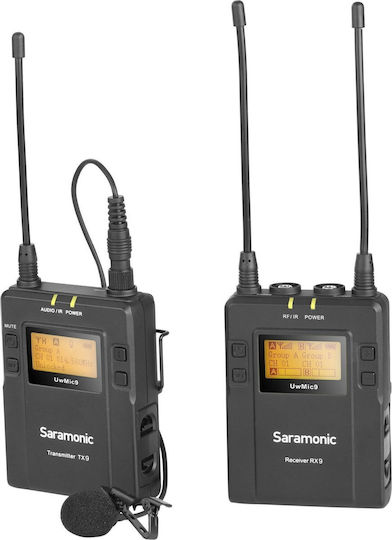

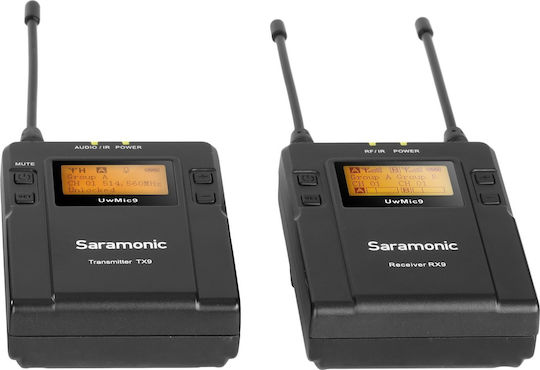

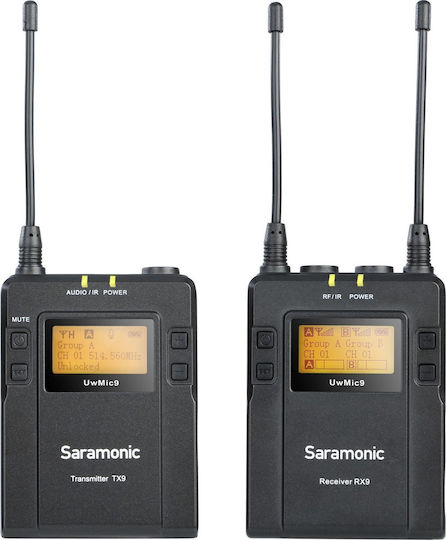

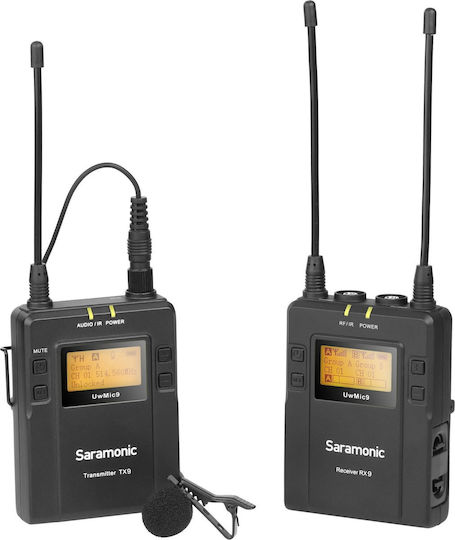

The Saramonic UwMic9 Kit 1 (RX9 + TX9) includes a receiver and a transmitter with a lavalier microphone, which are part of the UHF wireless transmission system in the analog frequency range from 514 MHz to 596 MHz.
The UwMic9 has a long range of up to 100 meters in open space. The system allows operation in two transmitter groups (A and B), with a choice between 96 radio frequency channels.
Features:
- Splitting the signal into two mono pieces.
- Intuitive menu.
- "Auto Scan" or infrared (RF) synchronization functions.

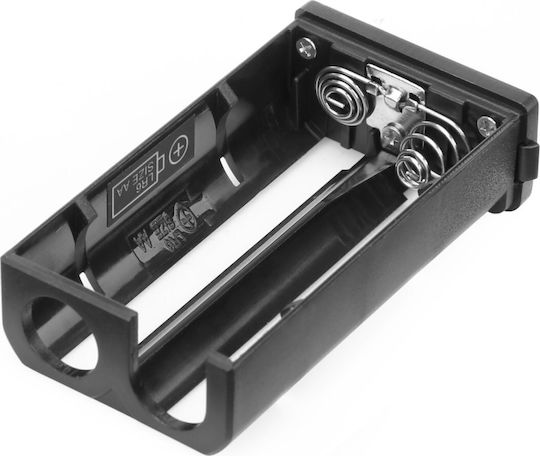

Power supply: All devices are powered by a set of two AA batteries.
Connection with:

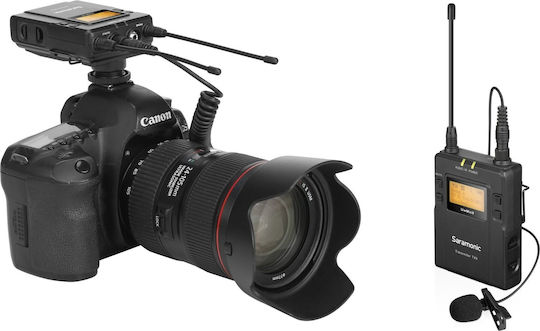

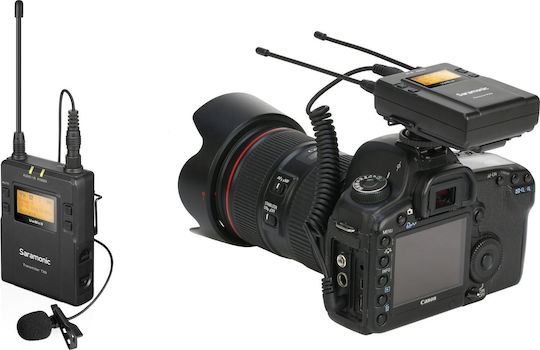

- Mini jack TRS 3.5 mm (included) for cameras and camcorders.
- XLR (mini jack 3.5 mm / XLR adapter included) for audio mixers.
- Lightning (optional LC-C35 cable) for iOS devices.
- USB-C (optional UTC-C35 cable) for Android devices.
- Mini jack TRRS 3.5 mm (optional SR-UC201 adapter or SR-PMC2 or SR-PMC1 cables) for portable devices.
- Optional USB-CP30 cable for PC | MAC.

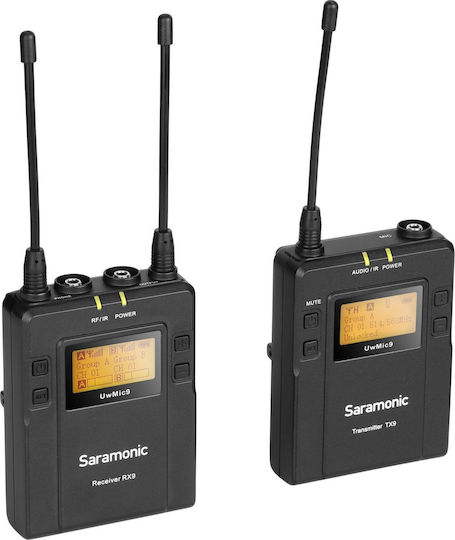

Receiver RX9: Allows receiving signals from two microphones simultaneously, with two mini jack (3.5 mm) outputs and a headphone output.

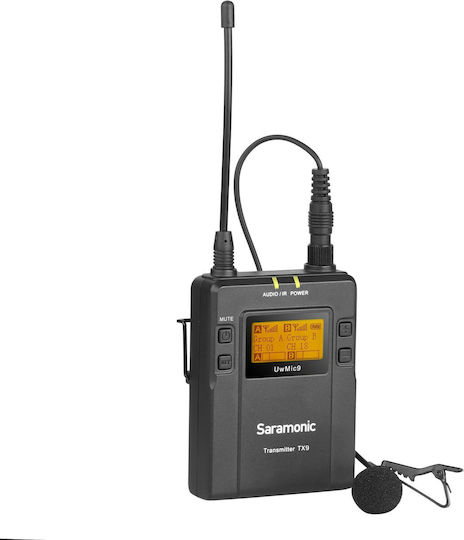

Transmitter TX9: Microphone sensitivity adjustment from 0 to 12 decibels, with a mini jack TRS 3.5 mm input.
Included accessories:
- Receiver RX9.
- Transmitter TX9.

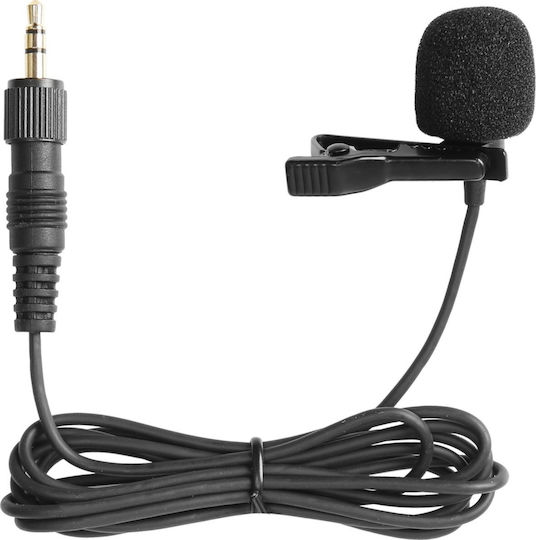

- Lavalier microphone SR-UM10-M1.
- Two mounts for hanging the transmitter and receiver.
- Adapter with 1/4" tripod mount and cold shoe.

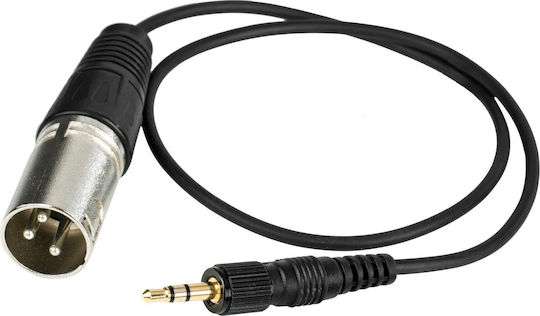

- Mini Jack / XLR cable for professional connection.
- Mini Jack / Mini Jack cable for cameras or camcorders.

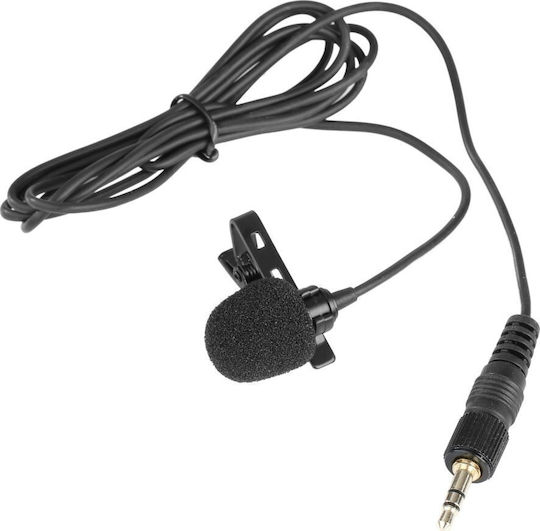

- Omnidirectional lavalier microphone with 3.5 mm mini jack connector.
Technical specifications:
- Number of transmission channels: 96.
- Number of groups: 2.
- Operating frequency: 514 MHz - 596 MHz.
- Operational sensitivity: - 95 dBm.
- Signal to noise ratio: 70 dB.
- Frequency response: 40 Hz - 18 kHz (± 3 dB).
- Range: up to 100 m in open space.
- Power supply: transmitter with 2 AA batteries, receiver with 2 AA batteries.
- Dimensions: transmitter 6.4 x 8.7 (+ antenna 10.5 cm) x 2.5 cm, receiver 6.4 x 8.7 (+ antenna 10.5 cm) x 2.5 cm.
Dimensions
- Directivity
- Omnidirectional
- Frequency
- 40 - 18000 Hz
- Max SPL
- 70 dB
- Signal-to-Noise Ratio (SNR)
- 70 dB
- Connectivity
- RF, UHF, XLR, Lightning, 3.5mm, TRRS
General Characteristics
- Device Group
- Presentations & Theater, Journalistic, Mobile, Photography & Video
- Placement
- Pendant, Clip On, Belt
- Vintage
- No
- Set
- Yes
- Color
- Black
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
