The SW400-VG-EC4 double-leaf swing garage door motor set is economical, powerful, and easy to install. It is a complete system for automating swing gates with 2 leaves.

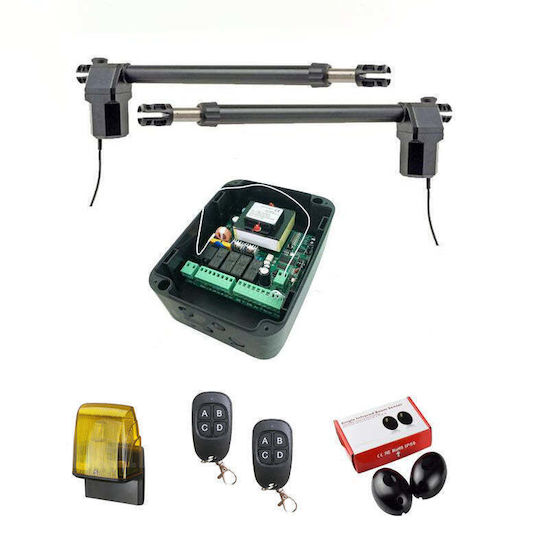

The set includes:

• 2 x SW400 arms 1 right D & 1 left S 330Watt each (linear mechanisms with permanent lubrication)
• 1 x S7-150 control panel with a waterproof plastic box
• 2 x wireless remote control ec4
• 1 x set (transmitter and receiver) wired safety photocells AGO-20
• 1 LED operation notification light VG-LED
• Mounting bases and pins for the motors
• 2 capacitors 8μF
• 2 release keys
• Installation instructions in Greek

Technical Specifications:

• Product code: SW400-VG-EC4
• Power supply voltage: 230 Vac - Single-phase alternating current
• Motor operating voltage: 230 Vac - Single-phase alternating current
• Supply current: 0.9 A
• Motor power consumption: 330 Watt
• Capacitor capacity: 8 μF
• Maximum leaf weight: 250 kg
• Maximum width per leaf: 3.5m
• Maximum force: 2200 N
• Open/close cycles per hour: up to 20 at 20°C
• Motor speed: 1400 rpm
• Operating temperature range: from -25 ºC to 60 ºC
• Degree of protection against dust and moisture: IP43
• Motor weight: 4.93 kg
• Set weight: 12 kg
• Effective piston stroke: 400 mm
• Opening/closing time: 33 sec
• Housing material: Aluminum
• Housing color: Black
• CE compliance declaration (motor): Yes
