Single Phase Electric Energy Meter Reset Wze-1rst

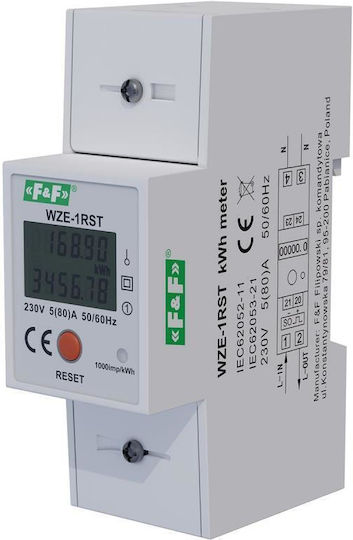

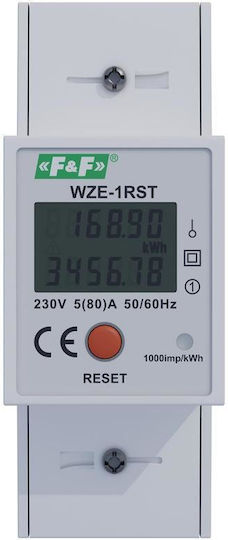

The F&F WZE-1-RST electricity meter with reset function directly measures single-phase AC consumption. It has two LCD displays showing total consumption and consumption since the last reset, as well...

The F&F WZE-1-RST electricity meter with reset function directly measures single-phase AC consumption. It has two LCD displays showing total consumption and consumption since the last reset, as well as a red LED indicator.

Reset the auxiliary meter by pressing and holding the “RESET” button for approximately 5 seconds. Its reading returns to 00000.0 without...

See full description See full description
40 13 €
Delivery Mon, 30 Nov - Fri, 04 Dec
2,50 € to a Skroutz Point
Do you want it with Free shipping?
From Agmia 4.4 (6)
Πειραιάς, Αττικής
See Industrial Materials on the page of Agmia
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Description

Description

The F&F WZE-1-RST electricity meter with reset function directly measures single-phase AC consumption. It has two LCD displays showing total consumption and consumption since the last reset, as well as a red LED indicator.

Reset the auxiliary meter by pressing and holding the “RESET” button for approximately 5 seconds. Its reading returns to 00000.0 without changing the main reading. The device is mounted on a TH35 rail inside a distribution board. Disconnect the power supply before installation.

  • Type: Single-phase electronic meter
  • Reference voltage: 230 V AC, 50 Hz
  • Base current: 5 A
  • Maximum current: 80 A
  • Minimum measured current: 0.02 A
  • Self-consumption: 8 VA, 0.4 W
  • Display range: 0–99999.9 kWh
  • Meter constant: 1000 imp/kWh

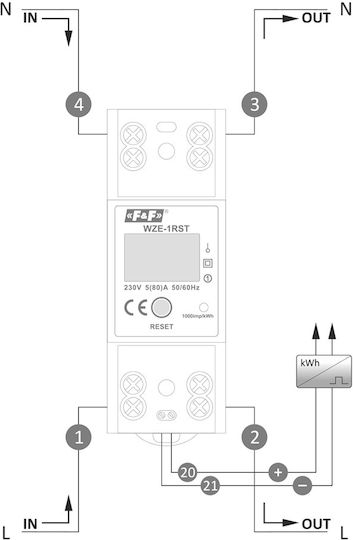

  • Pulse output: SO+ SO−, open collector
  • Pulse output connection voltage: Up to 27 V DC
  • Pulse output connection current: Up to 20 mA
  • Pulse duration: 90 ms
  • Accuracy class: 1
  • Maximum pulse output cable length: 20 m
  • Connection: 16 mm² screw terminals
  • Operating temperature: −25 to 65 °C
  • Dimensions: 2 modules (35 mm)
  • Mounting: On a 35 mm rail
  • Protection rating: IP51 for indoor use
  • Certification: MID
  • Package contents: Meter and user manual in Polish
