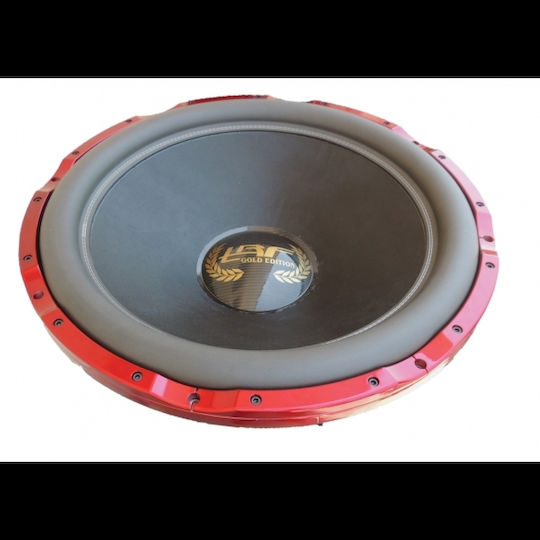

The TRF SW32200PC D0.5 passive car subwoofer has a 33-inch diameter and an RMS power rating of 13,000 W. Its cone is made of competition-grade paper, and its surround is made of foam. The voice coil is manufactured in the USA and has a 6-inch diameter, while the carbon-fiber dust cap is made in Europe.
- Type: Passive
- RMS power: 13,000 W
- Maximum power: 40,000 W
- Diameter: 33 inches
- Sensitivity: 96 dB
- Impedance: Dual, 0.5 Ω
- Voice coil layers: 8
- Voice coil wire material: Aluminum
- Cone material: Competition-grade paper
- Surround material: Foam
- Dust cap material: Carbon fiber
- Spider material: NOMEX
- Spider dimensions: 6-inch inner diameter / 15-inch outer diameter
- Spider layers: 6 pieces × 2 layers
- Resonant frequency: 20 Hz
- Vas: 650 L
- Xmax: 60 mm
- Magnet weight: 69 kg
- Net weight: 75 kg
- Basket material: Cast aluminum
- Magnet material: Ferrite
- Magnet dimensions: Ø330 × 25 mm, 3 pieces
- Mounting depth: 450 mm
- Mounting hole diameter: 770 mm
- Product Number
- Sw32200pcD0.5
Dimensions
- Functionality
- Passive
Technical Specifications
- Diameter
- 33 "
- Peak Power
- -
- Power (RMS)
- 13000 W
- Nominal Impendance
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
