The exclusive EZ Link design integrates most front panel headers, fan headers, and RGB headers into the EZ bridge and EZ control center, simplifying installation and creating a cleaner aesthetic.
Product Details
- Size
- Extended ATX
- Type
- Desktop
Processor
- Supported Processors
- AMD
- Models
- Ryzen
- Socket
- AM5
Chipset
- Model
- AMD X870E
Memory
- Memory type
- DDR5
- Quantity
- 4 DIMM Slots
- Memory Speeds
- 5600, 4800
- Memory Channels
- Dual Channel
Internal Connectors
- PCI Express x16 5.0
- 2 Slot
- SATA III 6Gb/s
- 4 Port
External Connectors
- Rear USB-A outputs
- 8 USB 3.2 Ports
- Rear USB-C outputs
- 2 USB 4.0 Ports
- Ethernet (LAN)
- 1
Specifications
- RGB Lighting
- Yes
- WiFi/Bluetooth
- Yes
- Extra
- U.2
Sound
- Sound Card Channels
- 7.1
- Additional Audio Connections
- Optical S/PDIF
Top Specs
- Memory
- 4x DDR5
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
Description

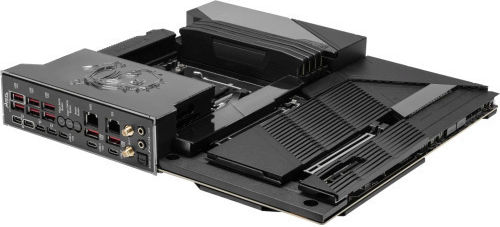

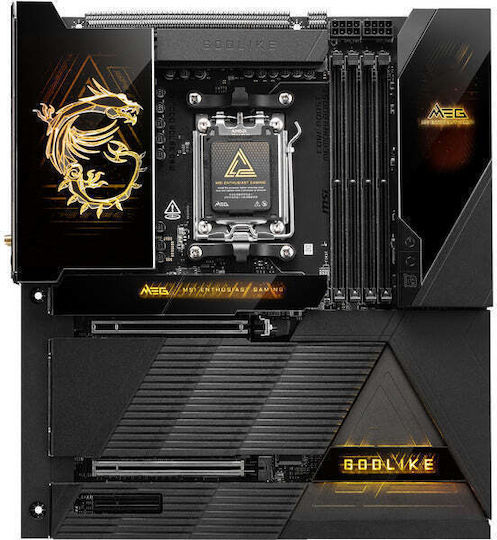

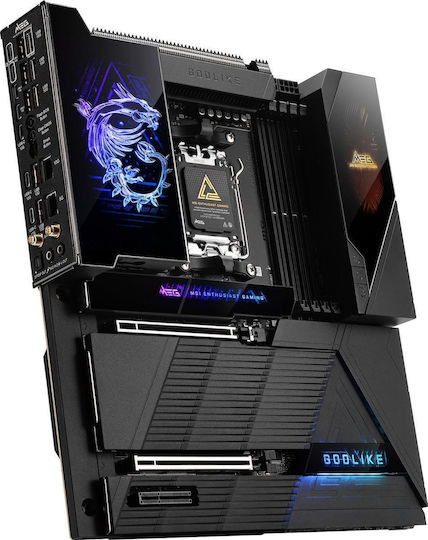

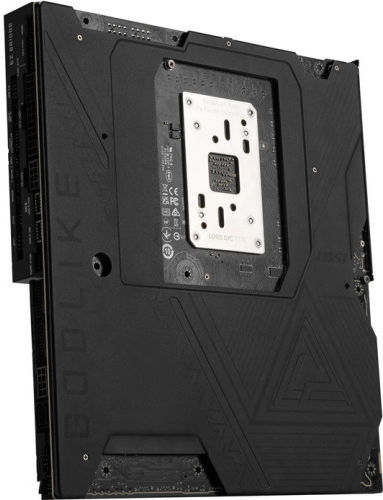

Motherboard for computers with AMD processor, installed in socket AM5, and DDR5 memories.
Features:
- Supports up to 4 storage units with SATA III 6GB/s connection.
- Includes 2 PCI Express 5.0 slots for connecting graphics cards and other expansions.
EZ LINK
The exclusive EZ Link design integrates most front panel headers, fan headers, and RGB headers into the EZ bridge and EZ control center, simplifying installation and creating a cleaner aesthetic.
FROZR GUARD

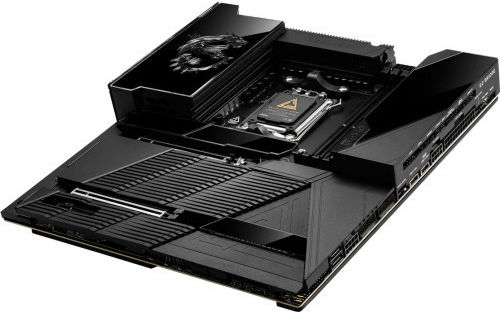

Top cooling features, such as wave fin design, cross heat pipe direct touch, MOSFET thermal pads 9W/mK, additional choke thermal pads, double-sided EZ M.2 Shield Frozr II, and Combo-fan header (for pump and system) (3A)
SEPTUPLE M.2 CONNECTORS and DDR5 MEMORY

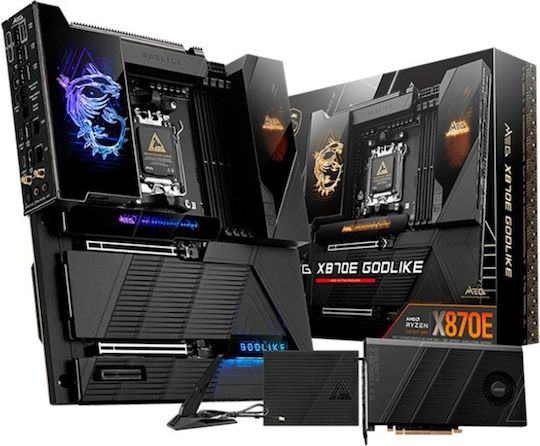

The storage includes built-in 2 M.2 Gen5 x4 slots and 3 M.2 Gen4 x4 slots with double-sided Shield Frozr. The M.2 XPANDER-Z GEN5 slider provides 2 additional M.2 Gen5 slots. 4 SMT DDR5 DIMM slots (1DPC 1R, 9000+ MT/s OC)
ULTRA CONNECT

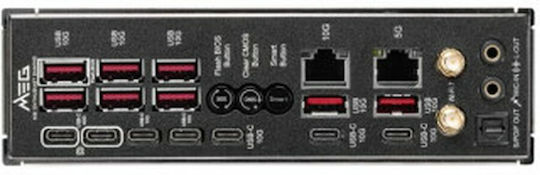

The network hardware includes full-speed Wi-Fi 7 with Bluetooth 5.4 &; 10Gbps plus 5Gbps LAN. The rear ports include USB4 Type-C 40 Gbps with display output and 7.1 USB High Performance Audio with Audio Boost 5 HD (supports S/PDIF output)
